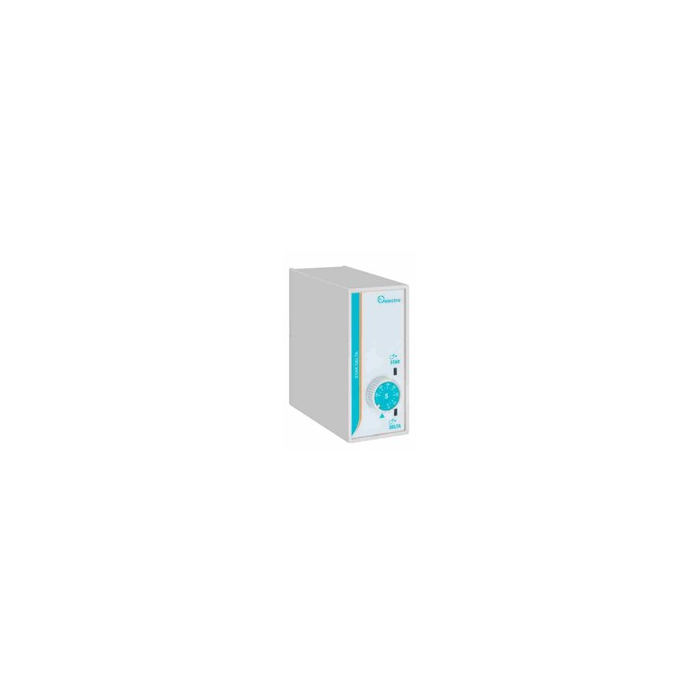

STAR-DELTA TIMER 400VAC, TIME RANGE: 30 SECONDS
Delta Star timer:
- Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
- The purpose of the unit is to allow star-delta starters to securely switch between star and delta.
- The front potentiometer can be used to change the star-make period.
- A predetermined 80 ms pause period stops contractors from working concurrently.
Features:
- 10A SPDT output with failsafe functionality.
- Recurring deviation: less than 1%.
- Oscillator time circuit control.
- For both ON and OFF ranges, multi-range.
- Time setting adjustable potentiometer.
- LED signal for DELTA and STAR outputs.
Specifications:
- TIME RANGE: 30s, 60s, 180s
- DESCRIPTION: Star-delta timer
- CONTACT: 10A SPDT
- RATED VOLTAGE: 250V
- MECHANICAL LIFE: 10x106 cycles
- PROTECTION INDEX IP: IP 20
- OPERATING TEMPERATURE: -10 to + 50°C
- STORAGE TEMPERATURE: -50 to + 85°C
- DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
| Brand | Electrodev |
|---|
