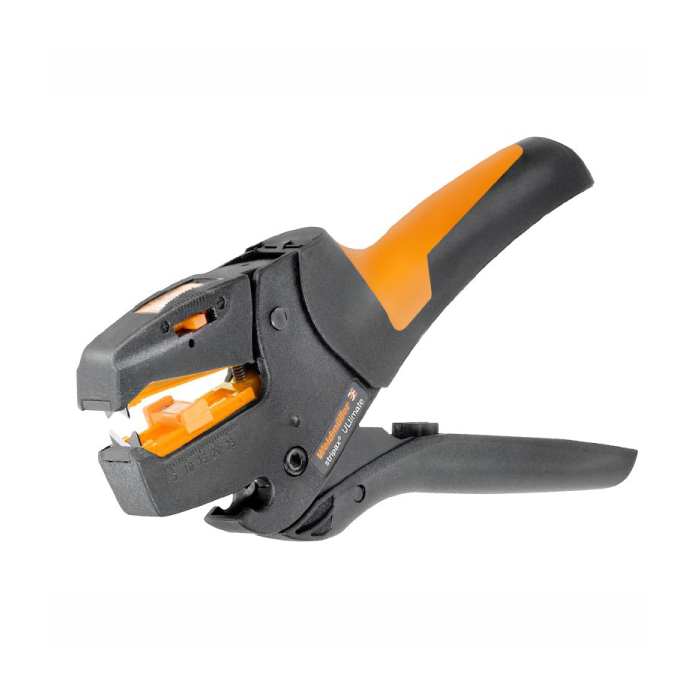

STRIPAX ULTIMATE
STRIPAX Ultimate:
- Tools for stripping that automatically adjust themselves.
- For flexible and solid conductors.
- Ideal for mechanical and plant engineering, railway and rail traffic, wind energy, robot technology, explosion protection, and marine, offshore, and ship building industries.
- The stripping length is adjustable using an end stop.
- The clamping jaws automatically open after stripping.
- No spreading out of separate conductors.
- Adaptable to different levels of insulating thickness.
- Double-insulated wires that require no additional adjustments in two process phases.
- The self-adjusting cutting unit does not play.
- Extended life of service.
- Ergonomic design optimized.
Specifications dimensions and weights:
- Depth: 22 mm.
- Depth (inches): 0.866 inch.
- Height: 99 mm.
- Height (inches): 3.898 inch.
- Width: 190 mm.
- Width (inches): 7.48 inch.
- Net weight: 174.63 g.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1.
- SCIP: cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0.
eshop_Filter_04_01_Tools:
- Protective insulation, 1000 V: No.
Technical data:
- Description of article: Wire stripper unit.
Stripping tools:
- Cable type: Flexible and solid conductors with halogen-free insulation.
- Conductor cross-section (cutting capacity): 6 mm².
- Conductor cross-section, max.: 6 mm².
- Conductor cross-section, min.: 0.25 mm².
- Stripping length, max.: 25 mm.
- Stripping range AWG, max.: 10 AWG.
- Stripping range AWG, min.: 24 AWG.
| Brand | Weidmuller |
|---|
