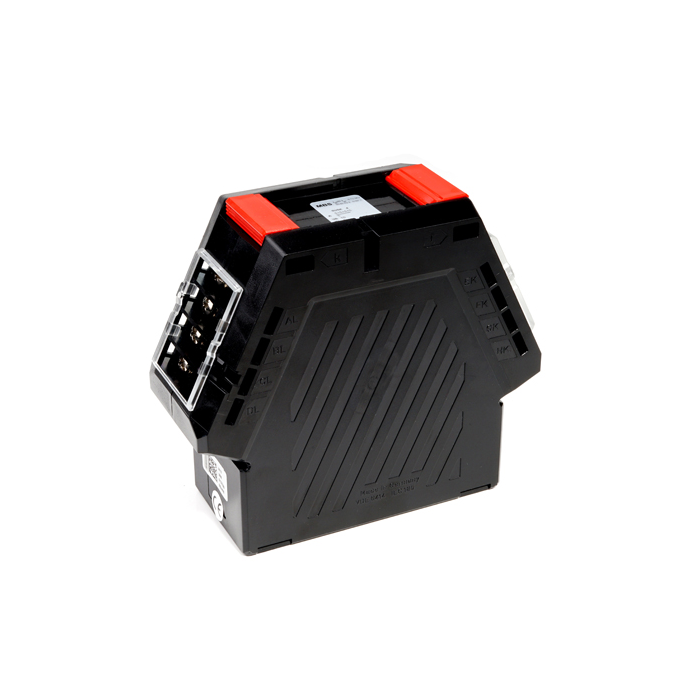

SUSK 4 5+5+5+5/5A SUMMATION CT cl1
General details:
- Class of isolation: E.
- Up to 0.72 kV is the maximum operating voltage.
- 50 Hz is the nominal frequency (others upon request).
- Ith = 60 x In is the nominal thermal short-time current.
- FS 5 is the over-current limiting factor up to a nominal current of 1500 A.
- MBS AG current transformers completely comply with VBG 4, IEC 61869/1+2, DIN 42600, and DIN VDE 0414/1.
Specifications:
- Summation current transformers (5A secondary - class 1),
- SUSK 4 summation current transformers,
- MODEL SUSK 4, RATIO 5+5+5+5/5A,
- DESCRIPTION Summation wound current transformer,
- CLASS 1,
- VA 10,
- DIMENSIONS (MM) (H) 137 x (W) 156 x (D) 65
| Brand | MBS |
|---|
