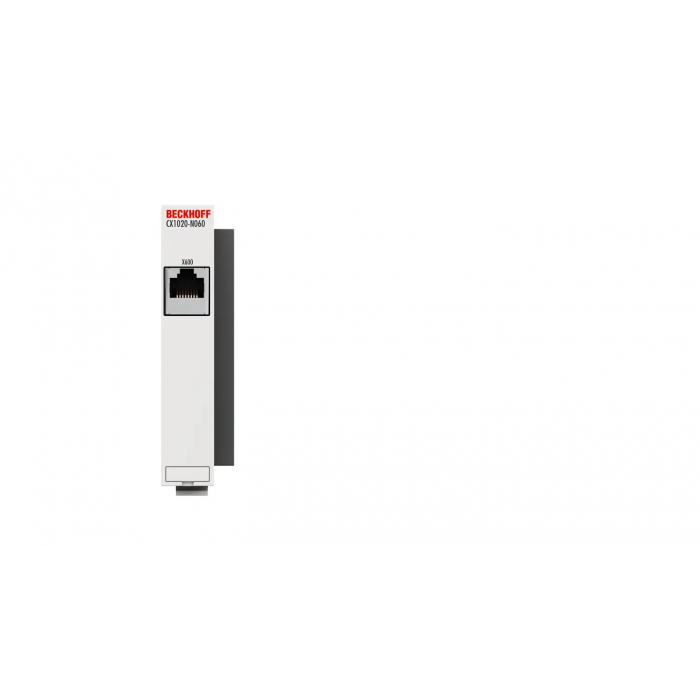

System interfaces CX1020-N060
A number of optional interface modules are available for the basic CX1020 CPU module. The internal PC/104 bus runs through the system interfaces, so that further CX components can be connected. The power supply of the system interface modules is ensured via the internal PC/104 bus. The CX1020-N060 system interface provides a further network interface that can also be retrofitted in the field. It can only be used if the CX1100-0004 power supply unit is not connected, since in this case the only internal interface available is used for connecting the Ethernet port.
Interfaces: 1 x Ethernet, 10/100 Mbit/s
Type of connection: 1 x RJ45
Properties: max. 20 m cable length Cat. 5, not combinable with CX1100-0004
Power supply: via system bus (through CX1100-xxxx power supply modules)
Dimensions (W x H x D): 19 mm x 100 mm x 51 mm
Weight: approx. 80 g
Relative humidity: 95 %, no condensation
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protection rating: IP20
| SKU | CX1020-N060 |
|---|
