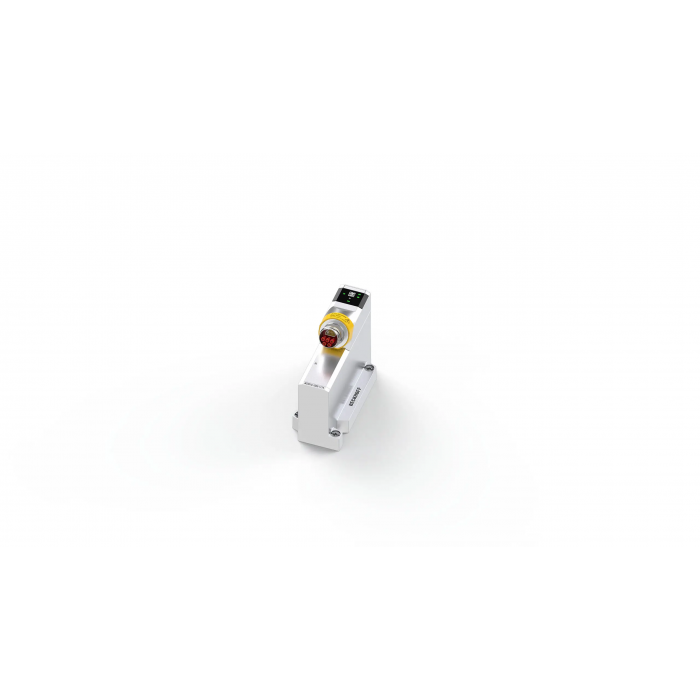

System module MS4210-1023-1114
The MS4210-1023-1114 MX-System module is a power output for low voltages including EtherCAT communication. Power and data communication are combined via the single-cable solution using B17 hybrid connectors. Up to 10 A each at 24 V and 48 V can be distributed to supply a remote control unit. The voltages are separately switchable and the output currents are measured.
Product category: system modules
Category/version: EtherCAT power output
Shutdown: yes
Output voltage forwarding: 24/48 V DC
Output current forwarding: 10 A
Connection method: B17
Supply voltage from backplane: 24/48 V DC
Fuse: ntegrated
Baseplate interface: data connector
Diagnostics: yes
Hot swap: no
TwinCAT version: TwinCAT 3
Approvals/markings: CE, (UL in preparation)
Dimensions (W x H x D): 30 mm × 110 mm × 72 mm
Number of rows: 1
Number of slots: 1
Material: zinc and aluminum die-cast
Cooling: convection
Operating/storage temperature: 0…+50 °C/-25…+85 °C
Protect. rating/installation pos.: IP65/67/variable
| SKU | MS4210-1023-1114 |
|---|
