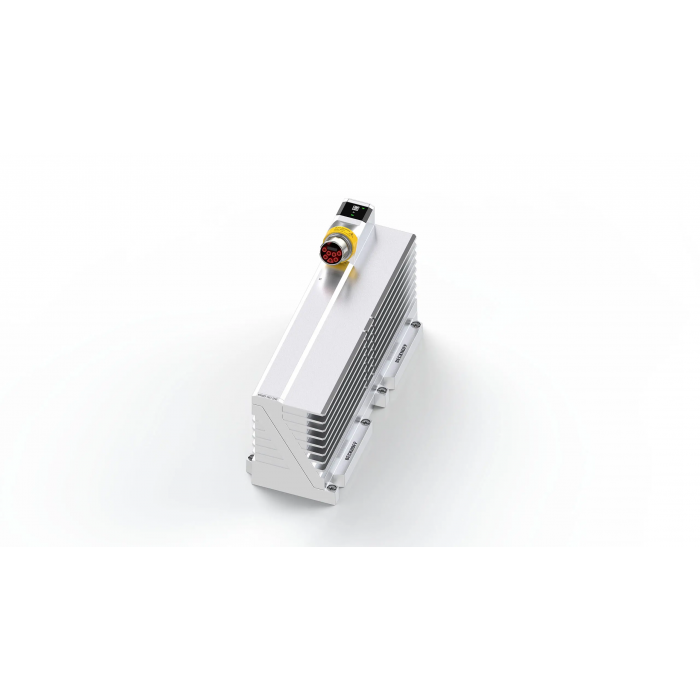

System module power output MS3020-1051-2245
The MS3020-1051-2245 MX-System module is a power output for the AC and DC voltages without communication output. Power is carried via the single-cable solution using B23 hybrid connectors. Up to 20 A each as 3-phase 400 V AC and 600 V DC can be distributed to supply a remote control unit. The output currents are measured.
Product category: system modules
Category/version: power output
Output voltage forwarding: 400 V AC/600 V DC
Output current forwarding: 20 A
Connection method: B17
Supply voltage from backplane: 400 V AC/600 V DC
Fuse: replaceable
Baseplate interface: data and power connector
Diagnostics: yes
Hot swap: no
TwinCAT version: TwinCAT 3
Weight: 2200 g
Approvals/markings: CE, (UL in preparation)
Dimensions (W x H x D): 70 mm × 240 mm × 112 mm
Number of rows: 2
Number of slots: 2
Material: zinc and aluminum die-cast
Cooling: convection
Operating/storage temperature: 0…+50 °C/-25…+85 °C
Protect. rating/installation pos.: IP65/67/variable
| SKU | MS3020-1051-2245 |
|---|
