TACHOMETER RELAY 12VDC

ZAR 931.26
Out of stock
SKU
RRP1012D

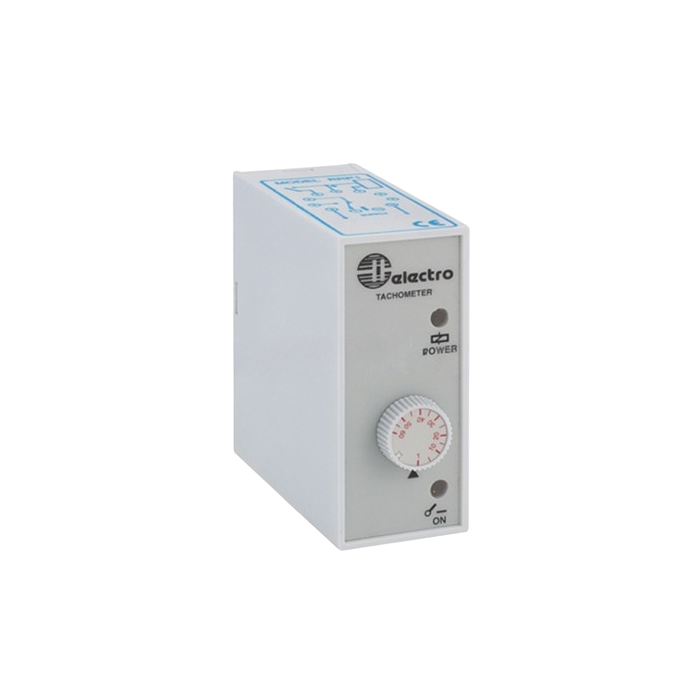

Relay tachometer:

  • Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
  • Multifunction tachometer relay with four configurable speeds that is microprocessor based.
  • The device interfaces directly with a Namur two wire proximity sensor or limit switch and has the option to operate at OVER or UNDER speeds.

Features:

  • Fail-safe mechanism.
  • Eight functions that can be chosen.
  • SPDT output relay with 10A current.
  • Microprocessor-driven.
  • Time settings that are customizable on the front face.
  • 35.5mm DIN rail mountable modular device.
  • Time intervals configurable from 0.3 seconds to 60 hours.
  • LED power supply and relay indication.
  • Adjustable function settings and time range on the front face.

Over/under speed:

  • CONTACT: 10A SPDT
  • SELECTABLE SPEEDS (RPM): 1-10, 10-100, 100-1000,1000-10000
  • RATED VOLTAGE: 250V
  • MECHANICAL LIFE: 10x106 cycles
  • PROTECTION INDEX IP: IP 20
  • OPERATING TEMPERATURE: -10 to + 50°C
  • STORAGE TEMPERATURE: -50 to + 85°C
  • DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
More Information
Brand Electrodev
