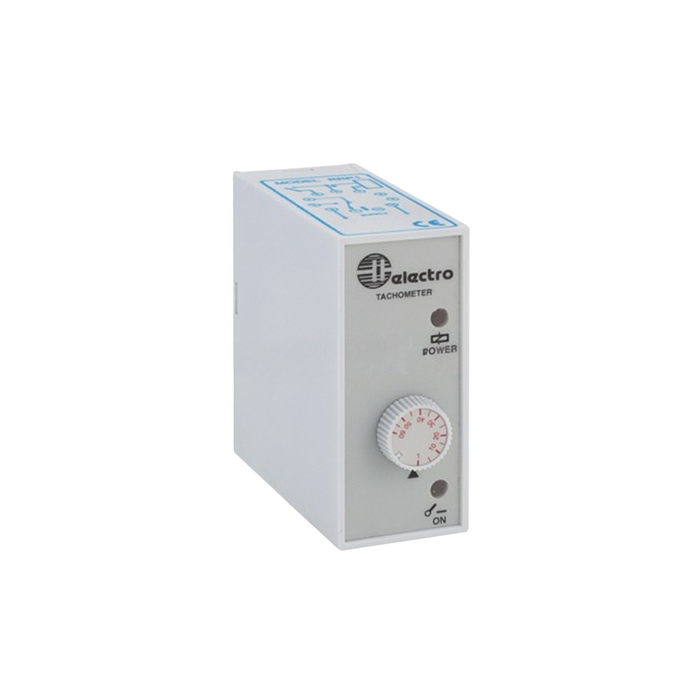

TACHOMETER RELAY 230VAC
Relay tachometer:
- Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
- Multifunction tachometer relay with four configurable speeds that is microprocessor based.
- The device interfaces directly with a Namur two wire proximity sensor or limit switch and has the option to operate at OVER or UNDER speeds.
Features:
- Fail-safe mechanism.
- Eight functions that can be chosen.
- SPDT output relay with 10A current.
- Microprocessor-driven.
- Time settings that are customizable on the front face.
- 35.5mm DIN rail mountable modular device.
- Time intervals configurable from 0.3 seconds to 60 hours.
- LED power supply and relay indication.
- Adjustable function settings and time range on the front face.
Over/under speed:
- CONTACT: 10A SPDT
- SELECTABLE SPEEDS (RPM): 1-10, 10-100, 100-1000,1000-10000
- RATED VOLTAGE: 250V
- MECHANICAL LIFE: 10x106 cycles
- PROTECTION INDEX IP: IP 20
- OPERATING TEMPERATURE: -10 to + 50°C
- STORAGE TEMPERATURE: -50 to + 85°C
- DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
| Brand | Electrodev |
|---|
