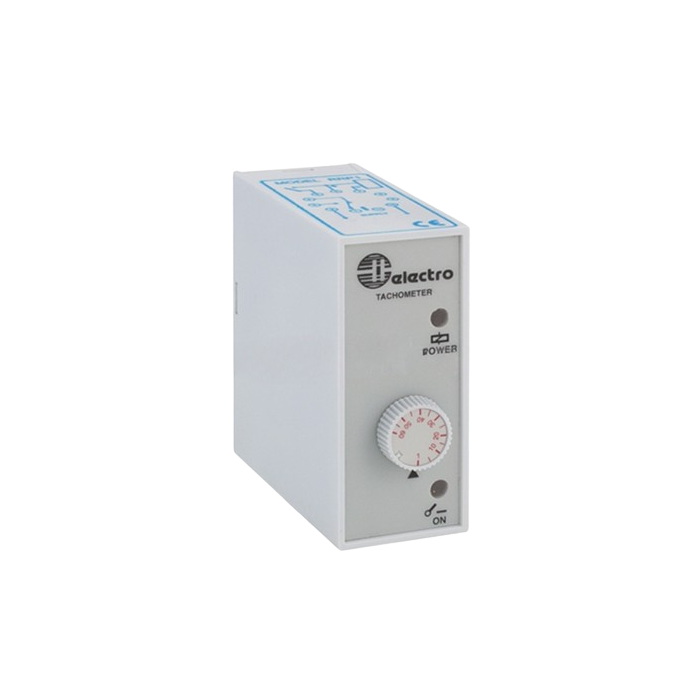

TACHOMETER RELAY 24V AC\DC

ZAR 931.26
Out of stock
SKU
RRP1024AD

Relay tachometer:

  • Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
  • Multifunction tachometer relay with four configurable speeds that is microprocessor based.
  • The device interfaces directly with a Namur two wire proximity sensor or limit switch and has the option to operate at OVER or UNDER speeds.

Features:

  • Fail-safe mechanism.
  • Eight functions that can be chosen.
  • SPDT output relay with 10A current.
  • Microprocessor-driven.
  • Time settings that are customizable on the front face.
  • 35.5mm DIN rail mountable modular device.
  • Time intervals configurable from 0.3 seconds to 60 hours.
  • LED power supply and relay indication.
  • Adjustable function settings and time range on the front face.

Over/under speed:

  • Contact: 10a SPDT.
  • Selectable speeds (rpm): 1-10, 10-100, 100-1000,1000-10000
  • Rated voltage: 250v
  • Mechanical life: 10x106 cycles
  • Protection index IP: IP 20
  • Operating temperature: -10 to + 50°c
  • Storage temperature: -50 to + 85°c
  • Dimensions (mm): (h) 92 x (w) 36 x (d) 64
More Information
Brand Electrodev
