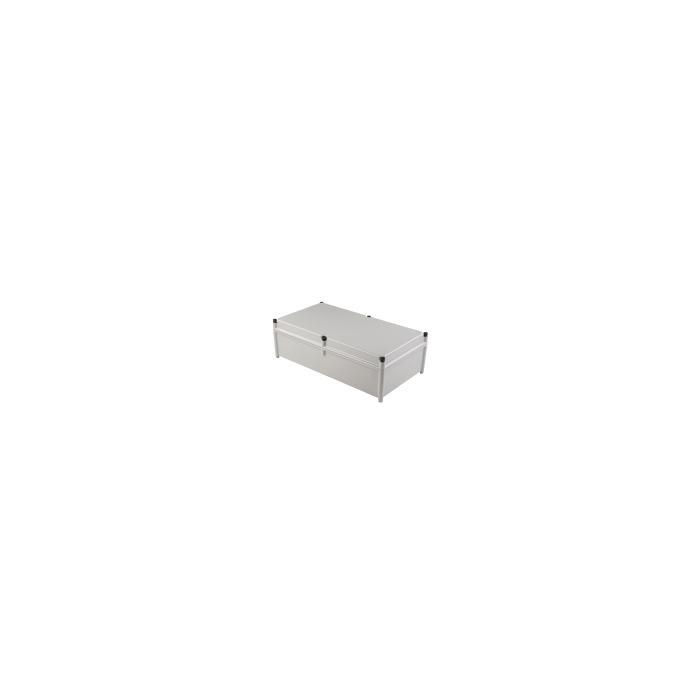

TBF 60/30/18 7035
Key Features:
- High ingress protection is ensured by the IP67 High Protection Class.
- Impact Resistance: Has a maximum impact resistance of 7 Joules.
- Corrosion resistance makes it appropriate for severe settings.
- Mounting Options: Mounting feet or fixing holes can be used for direct wall mounting.
- Lid Fastening: Fastened with captive crosshead screws made of stainless steel.
- Sealing: For improved impermeability, use a silicone or chloroprene-based moulded gasket.
- Fire Rating: Depending on the configuration, up to an E60 fire rating.
- Certifications: ATEX, IECEX, UL, and other certifications for usage in hazardous environments.
Specifications:
- Model: TBF 60/30/18 7035.
- Dimensions: 603 mm (Height) x 302 mm (Width) x 175 mm (Depth).
- Material: Glass-fibre reinforced polyester.
- Colour: Light Grey (RAL 7035).
- Operating Temperature: -50°C to 130°C.
- Mounting Dimensions:
- Width: 302 mm.
- Height: 603 mm.
- Net Weight: Approximately 4,479 grams.
- Cable Glands: Various sizes available (M16, M20, etc.).
| Brand | Weidmuller |
|---|
