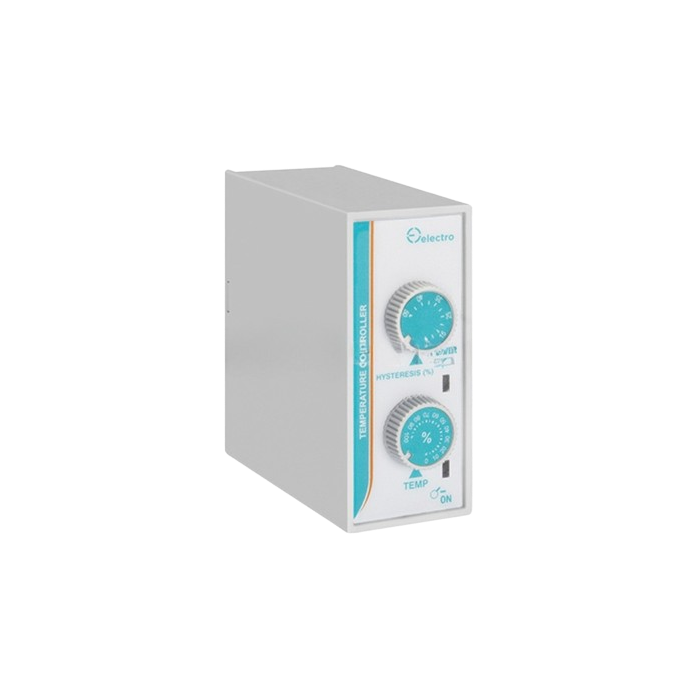

TEMPERATURE CONTROLLER 230VAC.
Controller of Temperature:
- Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
- A conventional three-wire PT100 resistive temperature sensor with two adjustable temperature ranges, or a temperature control unit.
- The device features a temperature and hysteresis adjustment, and it may be set for OVER or UNDER temperature.
Features:
- Features of a fail-safe SPDT output of 10 A.
- Powered on and relay activated LEDs.
- Adjustable hysteresis setting on a potentiometer.
- Temperature adjustment potentiometer.
- Straightforward PT100 temperature sensor hookup.
- The rear DIP switch has two temperature range selections.
Temperature controller:
- CONTACT: 10A SPDT
- STANDARD TEMPERATURE: -20°- 80°C
- RANGES: 80°-180°C
- DIRECT CONNECTION: PT100
- RATED VOLTAGE: 250V
- MECHANICAL LIFE: 10x106 cycles
- PROTECTION INDEX IP: IP 20
- OPERATING TEMPERATURE: -10 to + 50°C
- STORAGE TEMPERATURE: -50 to + 85°C
- DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
| Brand | Electrodev |
|---|
