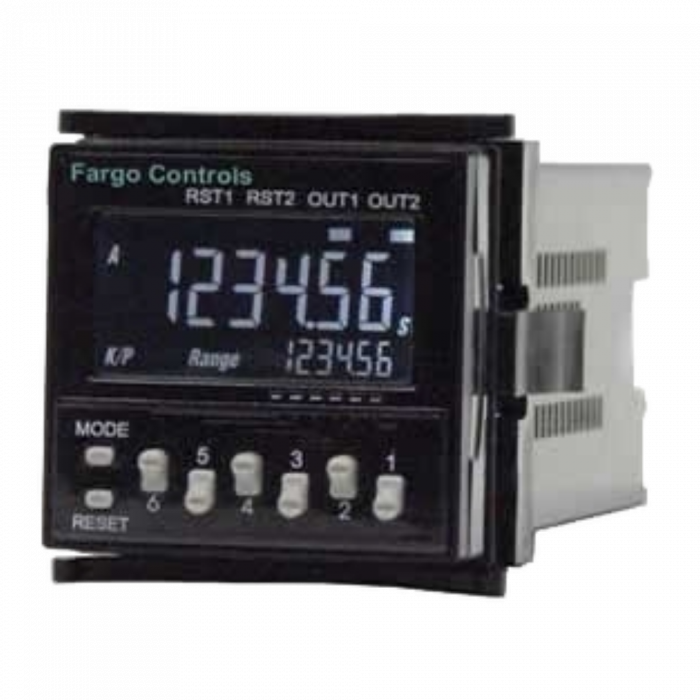

Specifications:

• Classification: Digital Timer/ Counter/ Tachometer
• Supported configurations: Timer, Dual Timer, 2-Stage Timer, 1-Stage counter, 2-Stage counter, total counter, batch counter, dual counter, twin counter, multi-mode, and tachometer.
• Operating voltage range: 100~240VAC (50/60HZ), 24 VDC.
• Installation: DIN rail or Flush mounting.
• Max. counter speed: 30HZ/ 1KHZ/ 5KHZ (10KHZ for Tachometer)
• Timer mode: Elapsed time (UP), Remaining time (down), (selectable)
• Interface: RS-232/485/422

Input Method:

• No-voltage input: ON impedance: 1kΩ max.
• Voltage Input: High (logic) level: 4.5~30 VDC Low (logic) level: 0~2 VDC (Input resistance: approximately 4.7 kΩ)

Control output:

• Relay contact output: 5A at 250 VAC.
• Transistor output: NPN open collector, max. 100mA at 30VDC.
