TM 202/12 V0
Pricing available on request

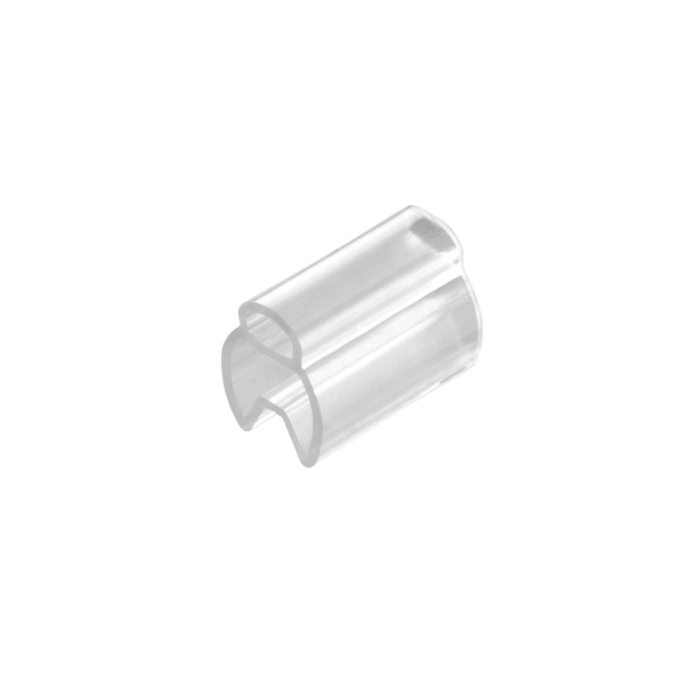

TM 202/12 V0:
- Our wide selection of TM sleeves is ideal for a variety of applications.
- They have a wide range of uses, from thin conductors to cables with enormous exterior diameters.
- This line of printed inlay tags provides the highest level of defense against external factors.
- TM sleeves enable installation flexibility.
- Ideal safeguarding for printed inlay tags.
- Broad range of uses for cables and conductors.
- Every cross-section uses the same sort of tag.
- TMX 30 cable tie mount (4.6 mm wide).
Dimensions and weights:
- Depth: 5 mm.
- Depth (inches): 0.197 inch.
- Height: 12 mm.
- Height (inches): 0.472 inch.
- Width: 5 mm.
- Width (inches): 0.197 inch.
- Net weight: 0.323 g.
Temperatures:
- Operating temperature range: -40 - 80 °C.
Environmental Product Compliance:
- REACH SVHC: /.
General data:
- Colour: Transparent.
- Material: PVC.
- Operating temperature range: -40 - 80 °C.
- Operating temperature range, max.: 80 °C.
- Operating temperature range, min.: -40 °C.
- Recommended industries: Transportation, Machinery.
- Type of printing: neutral.
- UL 94 flammability rating: V-0.
- Width: 5 mm.
Conductor and cable markers:
- Conductor cross-section, max.: 2.5 mm².
- Conductor cross-section, min.: 0.5 mm².
- Conductor O.D.: 2 - 4 mm.
- Conductor O.D., max.: 4 mm.
- Conductor O.D., min.: 2 mm.
- Cross-section for connected wire: 0.5 – 2.5 mm².
| SKU | 1798560000 |
|---|---|
| Brand | Weidmuller |
