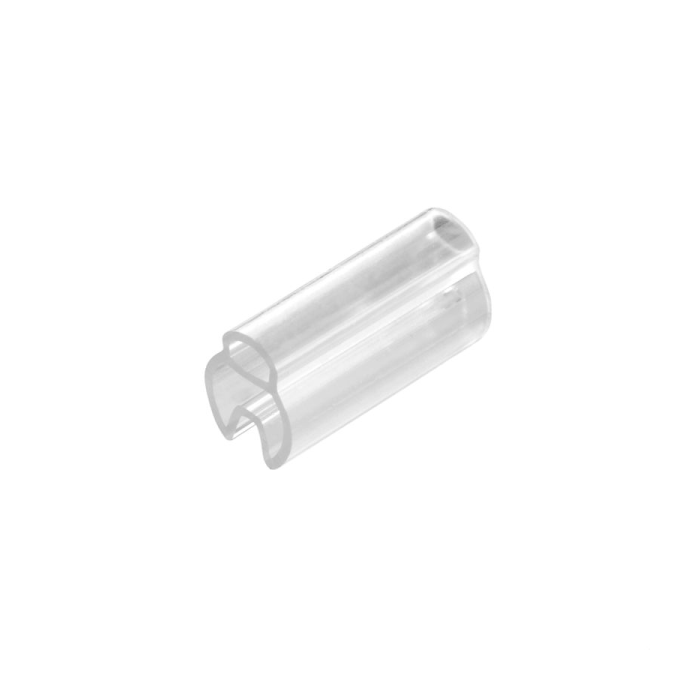

TM 203/18 V0
Pricing available on request
Description:
- Our wide selection of TM sleeves can be used for a variety of tasks.
- They have a wide range of uses, from thin conductors to cables with enormous exterior diameters.
- This line of printed inlay tags provides the highest level of defence against external factors.
- TM sleeves enable installation flexibility.
Features:
- Optimum protection for printed inlay tags.
- Wide range of applications for conductors and cables.
- One tag type for all cross-sections.
- TMX 30 for mounting with cable ties (width 4.6 mm).
Specifications:
- Version: TM, Socket x 6 mm, PVC.
- Quantity: 500.
- Depth: 6 mm.
- Height: 18 mm.
- Width: 6 mm.
- Operating temperature range: -40...80 °C.
- Colour: Transparent.
- Material: PVC.
- Type of printing: neutral.
- UL 94 flammability rating: V-0.
Conductor and cable markers:
- Conductor O.D.: 4 - 6 mm.
- Conductor O.D., max.: 6 mm.
- Conductor O.D., min.: 4 mm.
- Conductor cross-section, max.: 10 mm².
- Conductor cross-section, min.: 2.5 mm².
- Cross-section for connected wire: 2.5 - 10 mm².
| SKU | 1798480000 |
|---|---|
| Brand | Weidmuller |
