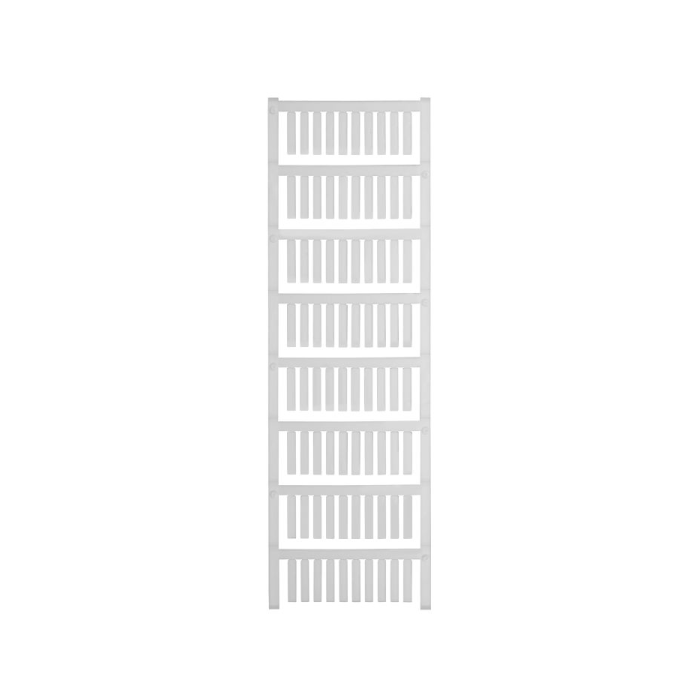

TM-I 20 MC NE WS
Pricing available on request
TM-I 20 MC NE WS:
- TM-I is a recognized and approved marker type for traffic engineering purposes.
- There are multiple tag lengths that can be used for individual labeling of lengthy character sequences.
- The project marker field makes separation and installation much easier.
- Sleeve pre-attachment and tag retrofitting provide a high degree of adaptability.
- The unique shape of TM-I makes assembly simple and ensures stable placement.
- They work with a variety of sleeves that are sold commercially.
- Printing the tags with the PrintJet CONNECT, plotter, or STI pen is quick and easy because of the MultiCard format.
- Easy handling of separation and installation thanks to the project marker field.
- Acknowledged and accredited marker for traffic engineering applications.
- Pre-attachment of sleeves and retrofitting of tags offer excellent versatility.
- Not suited for labelling with P-Ink or STI pen in connection with CLI T sleeves.
Dimensions and weights:
- Depth: 2 mm.
- Depth (inches): 0.079 inch.
- Height: 20 mm.
- Height (inches): 0.787 inch.
- Width: 4 mm.
- Width (inches): 0.157 inch.
- Net weight: 0.212 g.
Temperatures:
- Operating temperature range: -40 - 100 °C.
Environmental Product Compliance:
- REACH SVHC: /.
General data:
- Colour: White.
- compatible printer: PRINTJET CONNECT.
- Halogen: No.
- Material: Polyamide 66.
- Material colour according to resistance code: 9.
- Number of markers per combination: 1 MultiCard = Insert markers.
- Number of markers per packaging unit:
- Form of supply: MultiCard.
- Operating temperature range: -40 - 100 °C.
- Operating temperature range, max.: 100 °C.
- Operating temperature range, min.: -40 °C.
- Recommended industries: Transportation, Machinery.
- Type of printing: neutral.
- UL 94 flammability rating: V-2.
- Width: 4 mm.
Conductor and cable markers:
- Halogen: No.
SKU | 1680411044 |
---|---|
Brand | Weidmuller |
