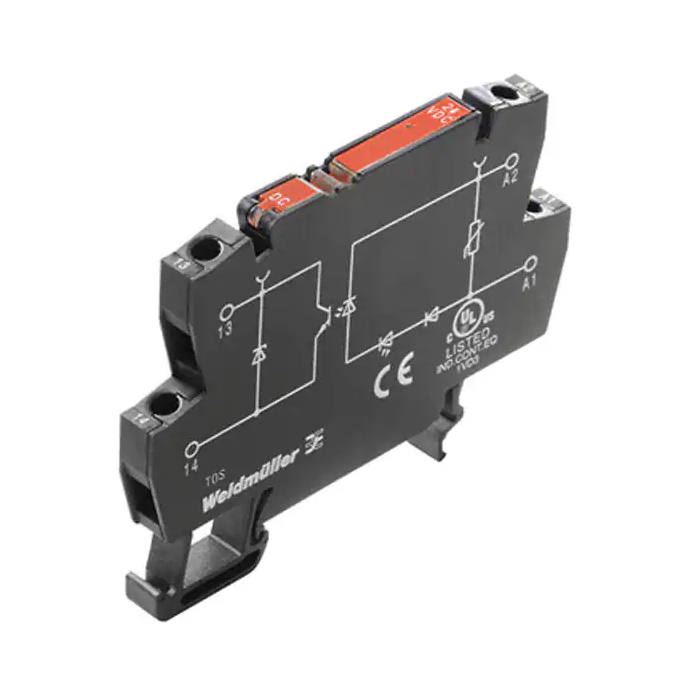

Temperatures:

• Storage temperature: -40 °C - 80 °C.
• Operating temperature: -20 °C - 60 °C.
• Humidity: 5-95% relative humidity, Tu = 40°C, without condensation.

Probability of failure:

• MTTF: 2,500 a.

Environmental Product Compliance:

• REACH SVHC: Lead 7439-92-1.
• SCIP: 9e2cbc49-76d9-4611-b8ec-5b4f549a0aa9.

Control side:

• Rated control voltage: 110 V DC ±20 %.
• Nominal control current: 2.6 mA DC.
• Power rating: <280 mW.
• Status indicator: Green LED.
• Protective circuit: Varistor, Reverse polarity protection.
• Input frequency: 200 kHz.

Load side:

• Rated switching voltage: 5 - 48 V DC.
• Continuous current: 0.5 A (DC1).
• Rated switching current: 500 mA.
• Load category: DC1.
• Max. switching voltage, AC: 48 V.
• Switch-on delay: <18 µs.
• Switch-off delay: <340 µs.
• Voltage drop at max. load: <1 V.
• Leakage current: <10 µA.
• Short-circuit-proof: No.
• Protective circuit, load side: Free-wheeling diode.
• Contact type: 1 NO contact (Transistor).
• max. switching frequency (DC control voltage): 200 Hz.

General data:

• Rail: TS 35.
• Test button available: No.
• Colour: black.
• UL94 flammability rating component:
• Component: Housing.
• UL94 flammability rating: V-0.

Insulation coordination:

• Rated voltage: 300 V.
• Pollution severity: 2.
• Surge voltage category: III.
• Clearance and creepage distances for control side - load side: > 3 mm.
• Dielectric strength for control side - load side: 1.2 kVeff / 1 min.
• Impulse withstand voltage: 4 kV (1.2/50 µs).
• Protection degree: IP20.

Further details of approvals / standards:

• Certificate no. (cULus): E223474.

Connection data:

• Wire connection method: Screw connection.
• Stripping length, rated connection: 9 mm.
• Tightening torque, min.: 0.4 Nm.
• Tightening torque, max.: 0.6 Nm.
• Clamping range, rated connection: 2.5 mm².
• Clamping range, min.: 0.5 mm².
• Clamping range, max.: 4 mm².
• Wire connection cross section AWG, min.: AWG 20.
• Wire connection cross section AWG, max.: AWG 12.
• Wire cross-section, solid, min.: 0.5 mm².
• Wire cross-section, solid, max.: 4 mm².
• Wire connection cross section, finely stranded, min.: 0.5 mm².
• Wire connection cross section, finely stranded, max.: 2.5 mm².
• Wire cross-section, finely stranded, min. (AWG): AWG 20.
• Wire cross-section, finely stranded, max. (AWG): AWG 12.
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 1.5 mm².
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 0.5 mm².
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 1.5 mm².
• Blade size: 0.6 x 3.5 mm.
