TOS 48-60VAC/48VDC 0 5A

ZAR 0.00 ZAR 0.00
Out of stock
SKU
8951030000

Pricing available on request

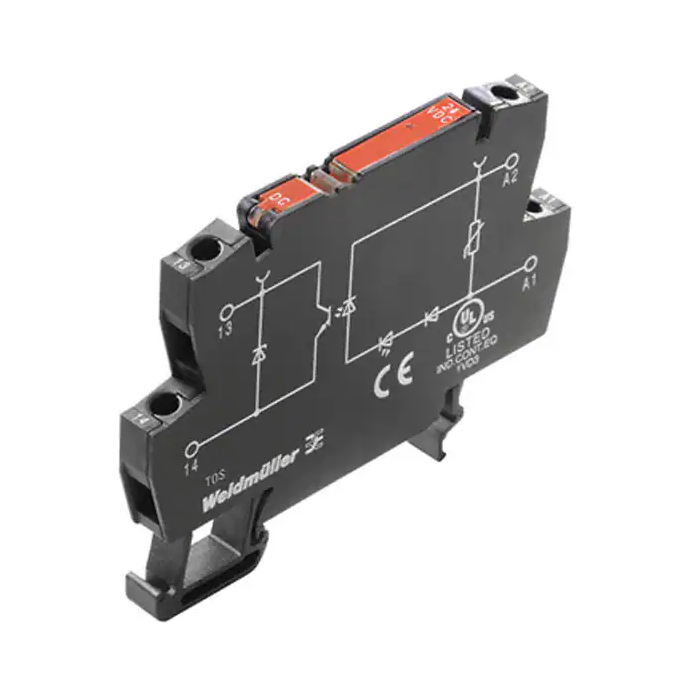

TOS 48-60VAC/48VDC 0,5A:

  • 1 NO contact (transistor).
  • Wear- and maintenance-free potential separation in a compact terminal block configuration.
  • Accessories that are appropriate for the cross-connection and the marker.
  • Input and output protection circuits are integrated.

Dimensions and weights:

  • Depth: 55 mm.
  • Depth (inches): 2.165 inch.
  • Height: 74.4 mm.
  • Height (inches): 2.929 inch.
  • Width: 6.1 mm.
  • Width (inches): 0.24 inch.

Net weight: 20.9 g.

Temperatures:

  • Storage temperature: -40 °C - 80 °C.
  • Operating temperature: -20 °C - 60 °C.
  • Humidity: 5-95% relative humidity, Tu = 40°C, without condensation.

Probability of failure:

  • MTTF: 2,500 a.

Environmental Product Compliance:

  • REACH SVHC: Lead 7439-92-1.
  • SCIP: 9e2cbc49-76d9-4611-b8ec-5b4f549a0aa9.

Control side:

  • Rated control voltage: 48…60 V AC ±20 %.
  • Nominal control current: 4.3 mA AC.
  • Power rating: <0.2 VA.
  • Status indicator: Green LED.
  • Protective circuit: Varistor, Rectifier.
  • Input frequency: 10 kHz.

Load side:

  • Rated switching voltage: 5 - 48 V DC.
  • Continuous current: 0.5 A (DC1).
  • Rated switching current: 500 mA.
  • Load category: DC1.
  • Max. switching voltage, AC: 48 V.
  • Switch-on delay: <12 ms.
  • Switch-off delay: <14 ms.
  • Voltage drop at max. load: <1 V.
  • Leakage current: <10 µA.
  • Short-circuit-proof: No.
  • Protective circuit, load side: Free-wheeling diode.
  • Contact type: 1 NO contact (Transistor).
  • max. switching frequency (DC control voltage): 10 Hz.

General data:

  • Rail: TS 35.
  • Test button available: No.
  • Colour: black.
  • UL94 flammability rating component:
    • Component: Housing.
    • UL94 flammability rating: V-0.

Insulation coordination:

  • Rated voltage: 300 V.
  • Pollution severity: 2.
  • Surge voltage category: III.
  • Clearance and creepage distances for control side - load side: > 3 mm.
  • Dielectric strength for control side - load side: 1.2 kVeff / 1 min.
  • Impulse withstand voltage: 4 kV (1.2/50 µs).
  • Protection degree: IP20.

Further details of approvals / standards:

  • Certificate no. (cULus): E223474.

Connection data:

  • Wire connection method: Screw connection.
  • Stripping length, rated connection: 9 mm.
  • Tightening torque, min.: 0.4 Nm.
  • Tightening torque, max.: 0.6 Nm.
  • Clamping range, rated connection: 2.5 mm².
  • Clamping range, min.: 0.5 mm².
  • Clamping range, max.: 4 mm².
  • Wire connection cross section AWG, min.: AWG 20.
  • Wire connection cross section AWG, max.: AWG 12.
  • Wire cross-section, solid, min.: 0.5 mm².
  • Wire cross-section, solid, max.: 4 mm².
  • Wire connection cross section, finely stranded, min.: 0.5 mm².
  • Wire connection cross section, finely stranded, max.: 2.5 mm².
  • Wire cross-section, finely stranded, min. (AWG): AWG 20.
  • Wire cross-section, finely stranded, max. (AWG): AWG 12.
  • Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm².
  • Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 1.5 mm².
  • Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 0.5 mm².
  • Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 1.5 mm².
  • Blade size: 0.6 x 3.5 mm.
