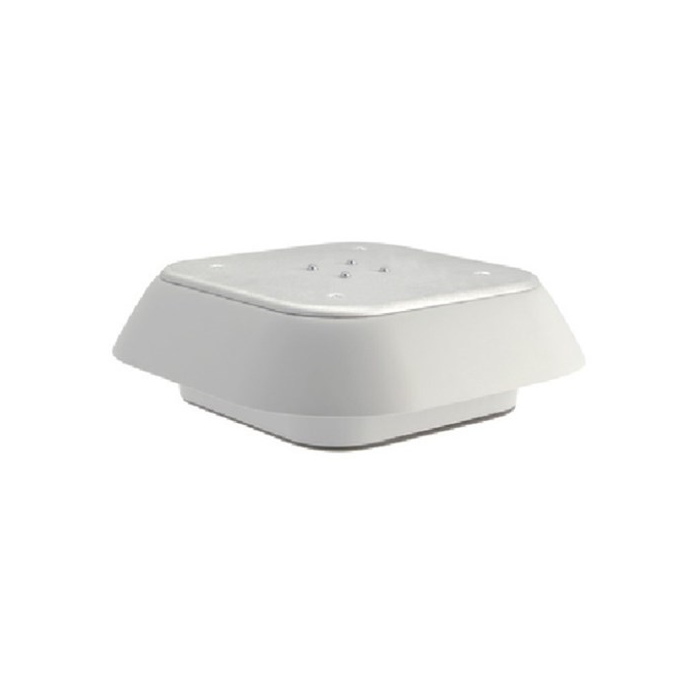

TP SERIES ROOF EXHAUST FAN IP24

ZAR 3,525.05
Out of stock
SKU
TP19U230B

The TP series roof mount exhaust fan units:

  • Designed to remove heat directly from the upper section of the cabinet, thereby promoting efficient air circulation within.
  • Fitted with a radial high-head fan.

Features:

  • Polyurethane foam permanent sealing gasket; available in RAL 7035 colour; other colours upon request.
  • Small size: hood 62 mm, overall, 94 mm in height; plastic components made of PC/ABS alloy and aluminium self-extinguishing to UL 94V-0.

Specifications:

  • SERIES: TP series
  • VOLTAGE (V): 230 VAC.
  • POWER (W): 70
  • AIR FLOW (M³/H): 530
  • NOISE (dB/A): 68
  • DESCRIPTION: Roof exhaust fan
  • INDEX PROTECTION IP: IP24
  • MOUNTING: Via 8 x 4 mm screws
  • DIMENSIONS (MM): (H) 324 x (W) 324 x (D) 175
More Information
Brand Fandis
