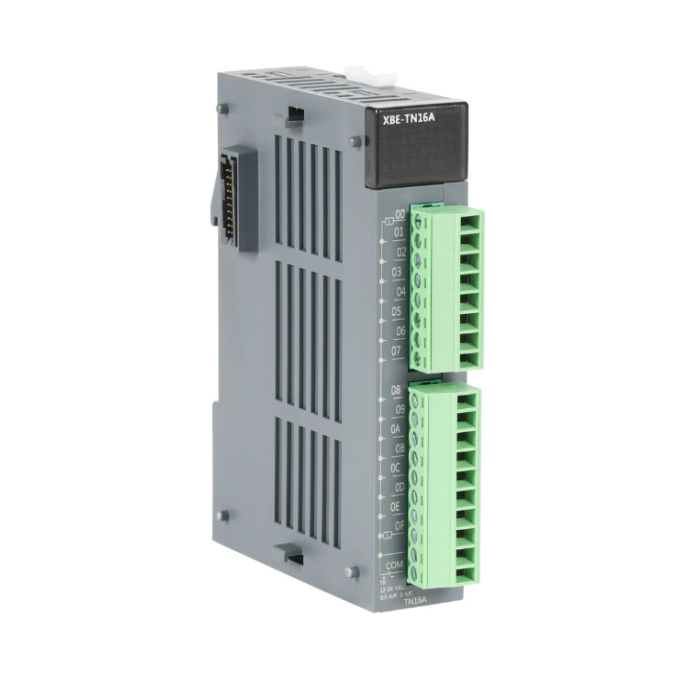

XGB Digital Transistor Output, 16 point, Sink-Type
Description:
- It consists of 8-point, 16-point, and 32-point output modules, and is easy to repair by terminal one-touch attachment.
- It provides a transistor and relay type.
Specifications:
- Type: Sink
- Output point: 16 points.
- Rated load voltage: DC 12/24V
- Load voltage range: DC 10.2-26.4V
- Max. load current: 0.2A/1 point, 2A/COM.
- Off leakage current: 0.1Ma or less
- Max. voltage drop (on): DC 0.4V
- Response time: off-on: 1mA or less, on-off: 1mA or less (Rated load, resistive load)
- Common method: 16 points/COM
- Internal current consumption: 60mA
- External power supply: voltage: DC 12/24V, Current: 10mA or less (DC 24V connection)
| Brand | LS Electric |
|---|
