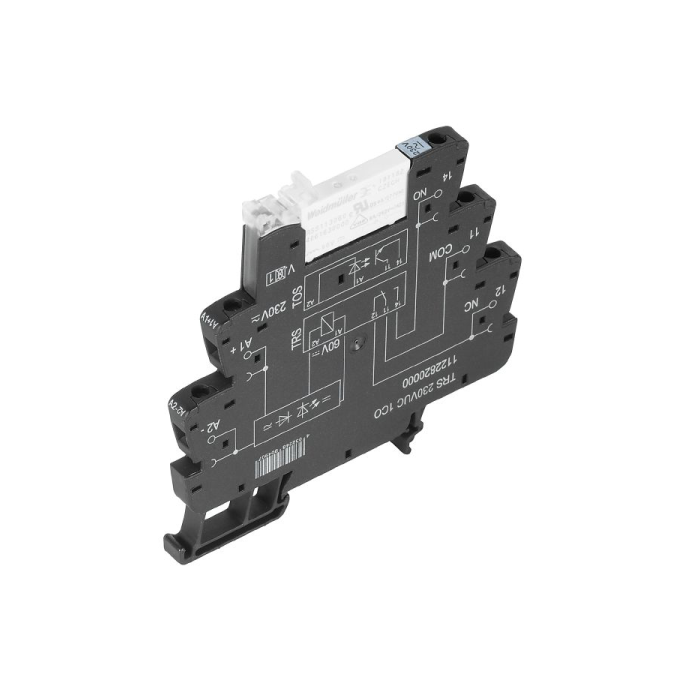

Rated data UL:

• Ambient temperature (operational), max.: 60 °C.
• Connection cross-section AWG, min.: AWG 26.
• Connection cross-section AWG, max.: AWG 14.
• Type of conductor: rigid copper conductor, flexible copper conductor.
• Tightening torque, max.: 0.4 Nm.
• Pollution severity level: 2.

Control side:

• Rated control voltage: 24 V DC ±20 %.
• Rated current AC: 11.7 mA.
• Rated current DC: 6.4 mA.
• Power rating: 270 Mva / 154 mW.
• Status indicator: Green LED.
• Protective circuit: Recrifier.
• Coil voltage of the replacement relay deviating from the rated control voltage: Yes.
• Coil voltage of the replacement relay: 24 V DC.

Load side:

• Rated switching voltage: 250 V AC.
• Continuous current: 6 A.
• Max. switching frequency at rated load: 0.1 Hz.
• Max. switching voltage, AC: 250 V.
• Max. switching voltage, DC: 250 V.
• Min. switching power: 1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V.
• Inrush current: 20 A / 20 ms.
• AC switching capacity (resistive), max.: 1500 VA.
• DC switching capacity (resistive), max.: 144 W @ 24 V.
• Switch-on delay: ≤ 6 ms.
• Switch-off delay: ≤ 40 ms.
• Contact type: 1 CO contact (AgNi).
• Mechanical service life: 5 x 106 switching cycles.

General data:

• Operating altitude: ≤ 2000 m, above sea level.
• Rail: TS 35.
• Test button available: No.
• Mechanical switch position indicator: No.
• Colour: black.
• UL94 flammability rating component:
• Component: Housing.
• UL94 flammability rating: V-0.
• Component: Retaining clip.
• UL94 flammability rating: V-0.

Insulation coordination:

• Rated voltage: 300 V.
• Pollution severity: 2.
• Surge voltage category: III.
• Clearance and creepage distances for control side - load side: ≥ 6 mm.
• Dielectric strength for control side - load side: 4 kVeff / 1 Min.
• Type of isolation at input and output: reinforced insulation.
• Dielectric strength of open contact: 1 kVeff / 1 min.
• Dielectric strength to mounting rail: 4 kVeff / 1 Min.
• Impulse withstand voltage: 6 kV (1.2/50 µs).
• Protection degree: IP20.

Further details of approvals / standards:

• Certificate No. (DNV): TAA00001E5.
• Certificate no. (cULus): E141197.

Connection data:

• Wire connection method: Screw connection.
• Stripping length, rated connection: 8 mm.
• Tightening torque, max.: 0.4 Nm.
• Clamping range, rated connection: 1.5 mm².
• Clamping range, min.: 0.14 mm².
• Clamping range, max.: 2.5 mm².
• Wire connection cross section AWG, min.: AWG 26.
• Wire connection cross section AWG, max.: AWG 14.
• Wire cross-section, solid, min.: 0.14 mm².
• Wire cross-section, solid, max.: 2.5 mm².
• Wire cross-section, solid, min. (AWG): AWG 26.
• Wire cross-section, solid, max. (AWG): AWG 14.
• Wire connection cross section, finely stranded, min.: 0.14 mm².
• Wire connection cross section, finely stranded, max.: 2.5 mm².
• Wire cross-section, finely stranded, min. (AWG): AWG 26.
• Wire cross-section, finely stranded, max. (AWG): AWG 16.
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.25 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 2.5 mm².
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 0.25 mm².
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 1.5 mm².
• Wire connection cross section, finely stranded, two clampable wires, min.: 0.5 mm².
• Wire cross-section, finely stranded, two clampable wires, max.: 1 mm².
• Blade size: size PH0.
