Specifications weights and dimensions:

• Depth: 15 mm.
• Height: 33 mm.
• Width: 2,000 mm.
• Net weight: 360 g.

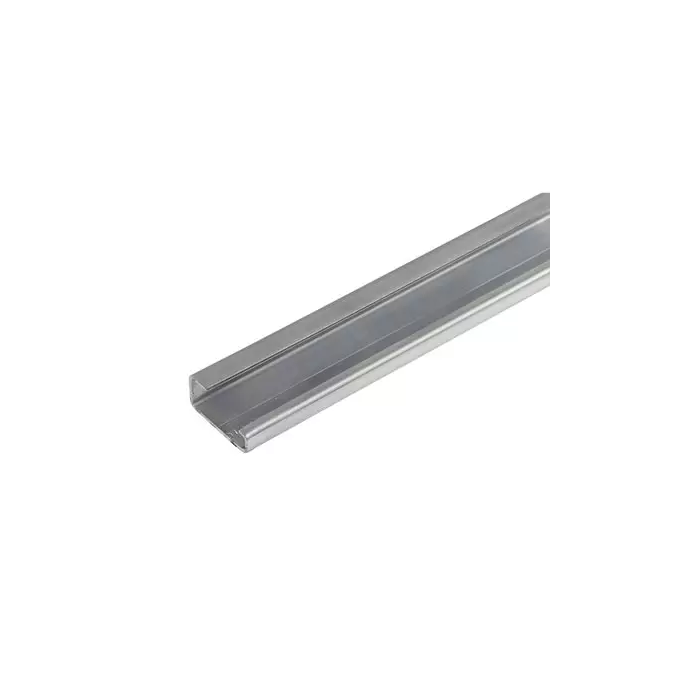

Mounting rail:

• Installation advice: Direct mounting.
• Length of terminal rail:
• Maximum length: 2,000 mm.
• Nominal length: 2,000 mm.
• Minimum: 0 mm.
• Material: Steel.
• The mounting rail is not pre-punched.
• The short circuit strength corresponds to E-Cu wire: 35 mm².
• The short-term withstand current per second is 4.2 kA, according to IEC 60947-7-2.
• Standards: DIN EN 60715.
• The surface is galvanic zinc-plated and passivated.
• Thickness: 1.5 mm.
