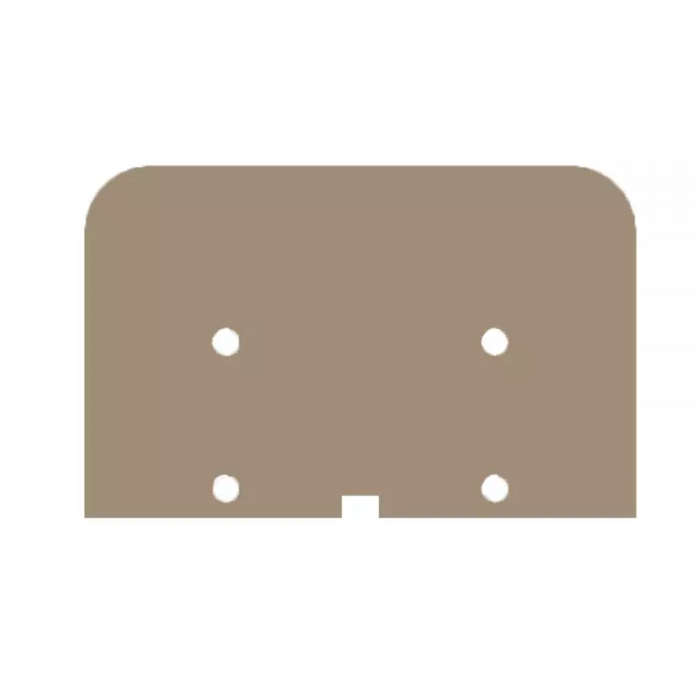

TW AKZ4
Terminal partition plate:
- A partition plate is used to separate circuits optically or to isolate electrical signals from nearby cross-connectors.
- The contour may be larger than the adjacent terminal blocks, in contrast to the end plate.
- However, it should not be smaller since otherwise the required clearance and creepage distances inside the application would be compromised.
Specifications weights and dimensions:
- Depth: 30 mm.
- Height: 47 mm.
- Width: 0.6 mm.
- Net weight: 0.992 g.
Temperatures:
- Storage temperature: -25°C - 55°C.
- Continuous operating temp., min: -50 °C.
- Continuous operating temp., max: 100 °C.
Material data:
- Material: PA66.
- Colour: Dark beige.
- UL 94 flammability rating: V-2.
System specifications:
- Version: Intermediate plate.
Additional technical data:
- Installation advice: Used between terminals.
- Snap-on: No.
General:
- Installation advice: Used between terminals.
| Brand | Weidmuller |
|---|
