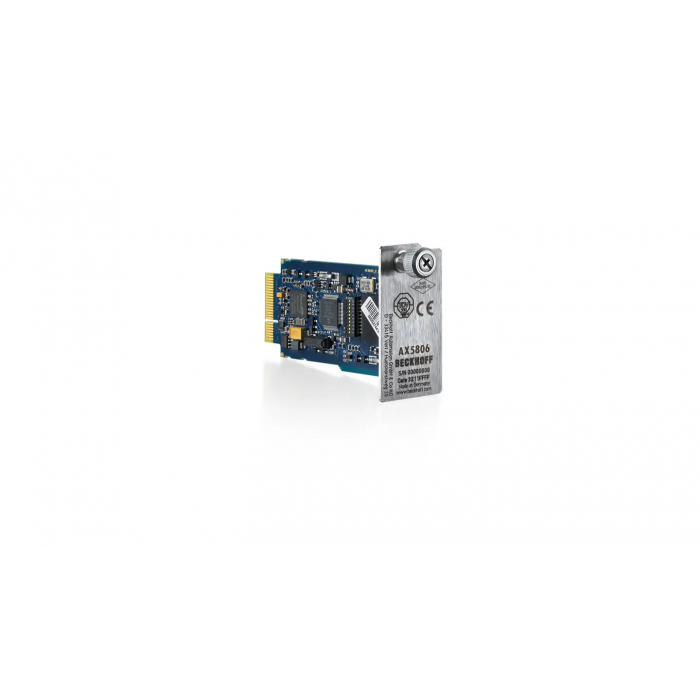

TwinSAFE drive option card AX5806
Drive-integrated safety functions:
stop functions (STO, SOS, SS1, SS2)
speed functions (SLS, SSM, SSR, SMS) with up to 8 speeds
position functions (SLP, SCA, SLI) with reference cams
acceleration functions (SAR, SMA)
rotating direction functions (SDIp, SDIn)
Suitable for AX5000 Servo Drives from 60 A to 170 A:
AX5160-0000-0200 and -0202
AX5172-0000-0200 and -0202
AX5190-0000-0200 and -0202
AX5191-0000-0200 and -0202
AX5192-0000-0200 and -0202
AX5193-0000-0200 and -0202
Function: TwinSAFE option card
Drive profile: FSoE
Safe acceleration functions: Safe Maximum Acceleration (SMA), Safe Acceleration Range (SAR)
Safe direction functions: Safe Direction positive (SDIp), Safe Direction negative (SDIn)
Safe speed functions: Safe Speed Range (SSR), Safely Limited Speed (SLS), Safe Speed Monitor (SSM), Safe Maximum Speed (SMS)
Safe position functions: Safely Limited Position (SLP), Safe CAM (SCA), Safely Limited Increment (SLI)
Safe stop functions: Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Stop 2 (SS2), Safe Operating Stop (SOS)
Safety standard: EN ISO 13849-1: 2015 (Cat. 4, PL e) and IEC 61508: 2010 (SIL 3)
Realization STO: via FSoE
Approvals/markings: CE, cULus, EAC
Ambient temperature (operation): 0…+50 °C
Protection rating: IP20
| SKU | AX5806 |
|---|
