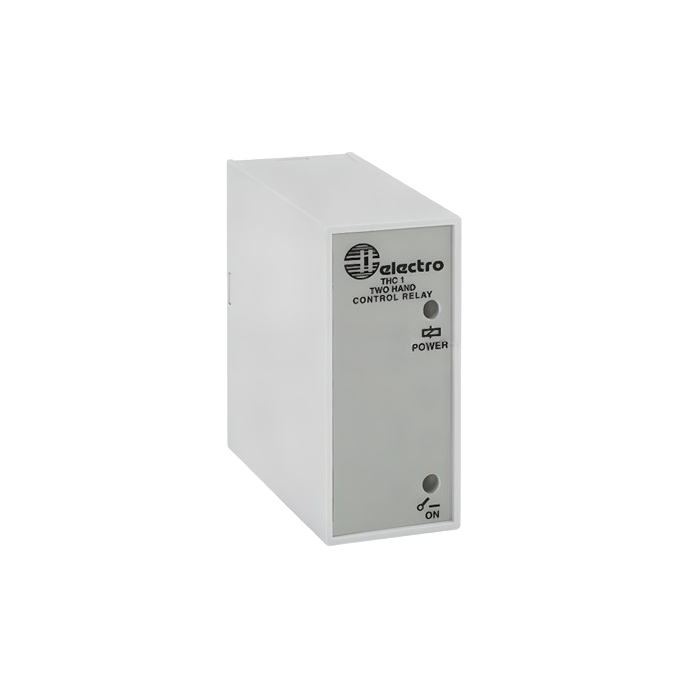

TWO HAND OPERATION MODULE 230VAC
Control with two hands (safety control):
- Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
- The device is intended for devices that require two button presses from the operator to operate (two hand control).
- There is a latch feature that may be used with a foot switch.
Features:
- 10A SPDT output latch input for foot operation.
- Powered on and relay activated LEDs.
- Set time for both hands to be in control.
- Two hand controls with two standard open inputs.
- DESCRIPTION: Two hand controllers
- CONTACT: 10A SPDT
- RATED VOLTAGE: 250V
- MECHANICAL LIFE: 10x106 cycles
- PROTECTION INDEX IP: IP 20
- OPERATING TEMPERATURE: -10 to + 50°C
- STORAGE TEMPERATURE: -50 to + 85°C
- DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
| Brand | Electrodev |
|---|
