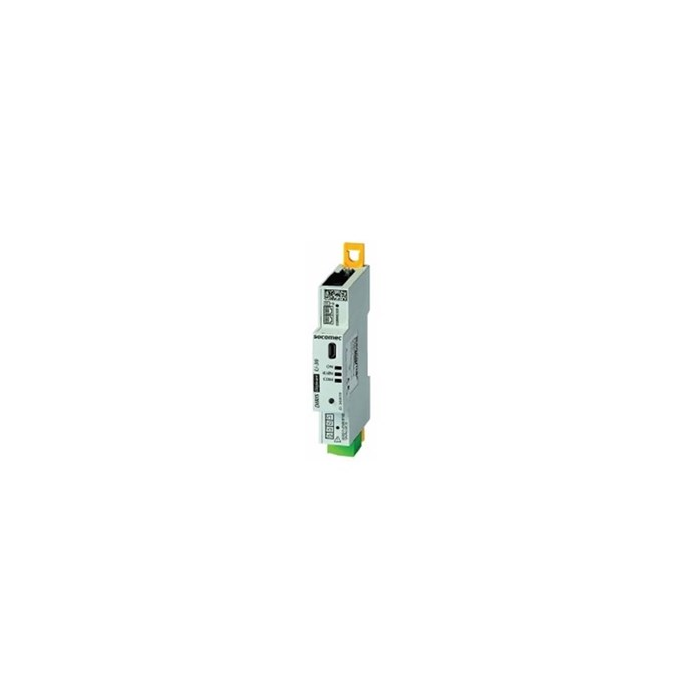

Digiware DIRIS DC:

• The best option for metering usage is the multi-circuit power monitoring device, or DIRIS Digiware. Measuring and keeping an eye on the electrical energy quality for use in commercial and industrial settings.
• The complete system's DC voltage is measured using the DIRIS Digiware U-31/32dc module.
• With a direct connection, it can measure up to 180 VDC, making it compatible with nominal voltages that are typically 24 or 48 VDC.

Qualities:

• Precision according to IEC 61557-12 standard (Class 0.5).
• Implementation in 25% less time than current metering technologies.
• Installing current sensors and measuring modules where the load is closest to the source.
• Has independent current inputs that allow it to monitor several circuits with a single current measuring module.
• Small and adaptable design: ideal for both new and old installations, even panels with limited room.

Modules for measuring voltage:

• Precision of voltage measurement: Class 0.5.
• For the entire system, there is only one voltage measurement point.
• The system is compatible with all voltage levels up to 1650 VDC thanks to voltage adapters.
• A comprehensive, focused solution for voltage monitoring, metering, and voltage quality analysis.
• The RJ45 bus lets you supply electricity to all connected devices and evaluate voltage.
