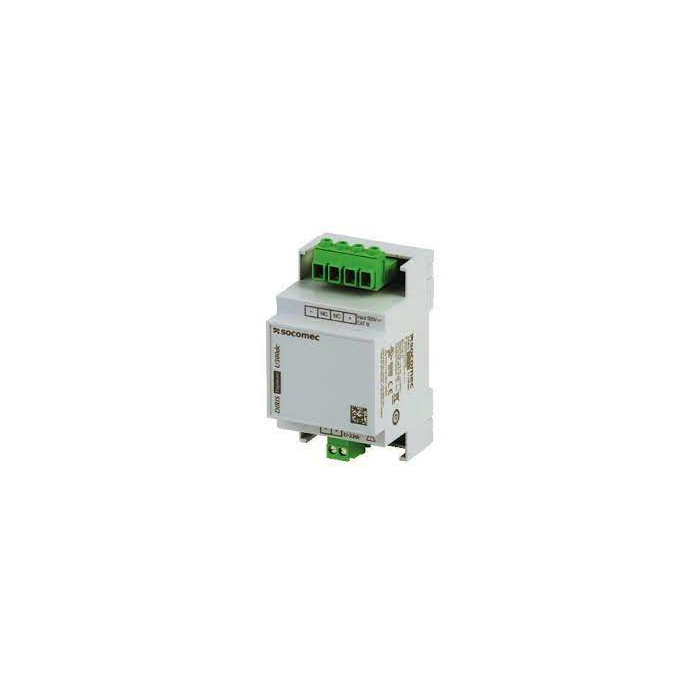

U-500dc V/METER MOD 200-600VDC

ZAR 3,997.57
Out of stock
SKU
4829 0153

Specifications:

  • DC voltage adaptor.
  • SERIES DC Digiware.
  • MODEL U500DC.
  • RANGE 200...600 VDC.
  • DESCRIPTION Modular voltage adaptor metering module.
  • MODULE WIDTH (MM) 53.

Digiware DIRIS DC:

  • The best option for metering usage is the multi-circuit power monitoring device, or DIRIS Digiware. Measuring and keeping an eye on the electrical energy quality for use in commercial and industrial settings.
  • The complete system's DC voltage is measured using the DIRIS Digiware U-31/32dc module.
  • With a direct connection, it can measure up to 180 VDC, making it compatible with nominal voltages that are typically 24 or 48 VDC.

Qualities:

  • Precision according to IEC 61557-12 standard (Class 0.5).
  • Implementation in 25% less time than current metering technologies.
  • Installing current sensors and measuring modules where the load is closest to the source.
  • Has independent current inputs that allow it to monitor several circuits with a single current measuring module.
  • Small and adaptable design: ideal for both new and old installations, even panels with limited room.

Modules for measuring voltage:

  • Precision of voltage measurement: Class 0.5.
  • For the entire system, there is only one voltage measurement point.
  • The system is compatible with all voltage levels up to 1650 VDC thanks to voltage adapters.
  • A comprehensive, focused solution for voltage monitoring, metering, and voltage quality analysis.
  • The RJ45 bus lets you supply electricity to all connected devices and evaluate voltage.
More Information
Brand SOCOMEC
