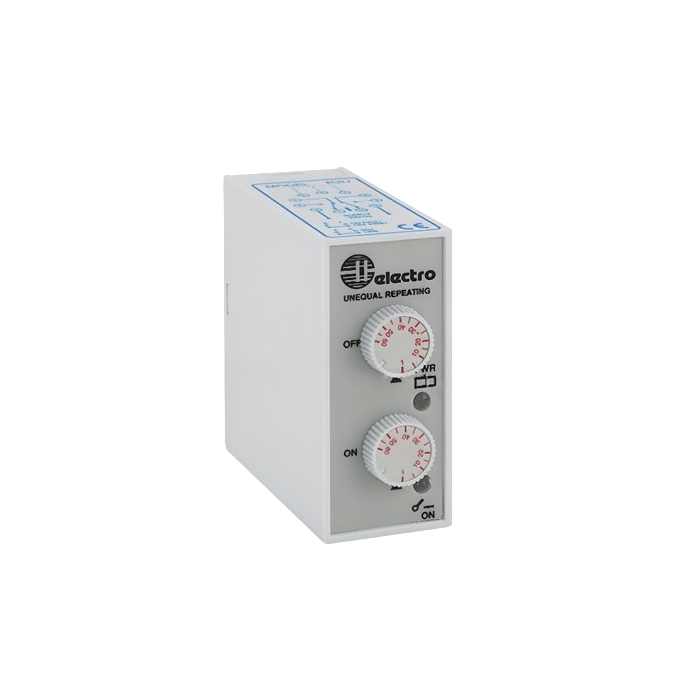

UNEQUAL REPEAT TIMER 24V AC/DC
Unequal Repeating:
- Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
- Uneven repeating timer based on microprocessor, featuring two adjustable modes of operation and eight independently selectable ON and OFF time ranges ranging from 0.3 seconds to 60 hours.
- You can choose only one of the two times—A or B—for the ON and OFF periods. numerous applications because of the combination of time intervals and functions.
- A great degree of accuracy can be attained because of the unit's sophisticated design.
- After the supply is provided, anything that is adjustable on the front potentiometer is not recognized.
- This stops the time range from changing inadvertently.
- You can individually change the ON and OFF times.
Features:
- Recurrence deviation:0.2% Microprocessor-oriented architecture.
- First, choose an ON or OFF time.
- Time span: 0.3 seconds to 60 hours with Relay ON and Power Supply ON LEDs.
- Select from eight different ON and OFF timer ranges with the rear DIP switch.
- separate potentiometer with movable ON and OFF time settings.
Specifications:
- TIME RANGE (A): (1) 0.3 - 6s, (2) 3 - 60s, (3) 0.3 - 6m, (4) 3 - 60m
- TIME RANGE (B): (1) 0.3 - 6m, (2) 3 - 60m, (3) 0.3 - 6h, (4) 3 - 60h
- DESCRIPTION: Unequal repeating timer
- CONTACT: 10A SPDT
- RATED VOLTAGE: 250V
- MECHANICAL LIFE: 10x106 cycles
- PROTECTION INDEX IP: IP 20
- OPERATING TEMPERATURE: -10 to + 50°C
- STORAGE TEMPERATURE: -50 to + 85°C
- DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
| Brand | Electrodev |
|---|
