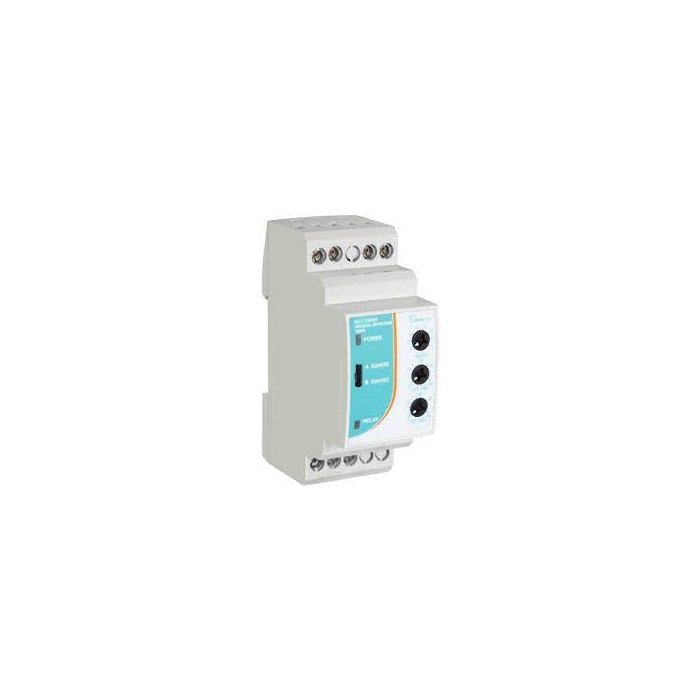

UNEQUAL REPEATING TIMER 110VAC
Unequal Repeating Timer - DUR:
- Compact modular modules in the Electro D series of control and timing devices make it simple to integrate them into distribution boards or standard panels.
- They align with ordinary tiny circuit breakers (MCBs) and attach straight onto DIN rail.
- Using the most recent technological advancements, a multi-range timer can handle most ON and OFF time range combinations.
- Front and rear panel positioning is possible with DIN rail mounting.
- The device will reset if the time range is altered via the front-mounted dials.
Specifications:
- DESCRIPTION: Unequal repeating electronic timer
- TIME RANGE A (ON-OFF): 6sec - 6sec, 60sec - 60sec, 6min - 6min, 60min - 60min, 6sec - 60sec, 60sec - 6sec, 6sec - 60min, 60min - 6sec
- TIME RANGE B (ON-OFF): 60sec - 6min, 6min - 60sec, 6min - 60min, 60min - 6min, 60min - 6hours, 6hours - 60min, 60sec - 6hours, 6hours - 60sec
- CONTACT: 10A
- RATED VOLTAGE: 250V
- MECHANICAL LIFE: 10x106 cycles
- PROTECTION INDEX IP: IP 20
- OPERATING TEMPERATURE: -10 to + 50°C
- STORAGE TEMPERATURE: -50 to + 85°C
- DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
Features:
- Controlled by a microprocessor.
- 16 Time range adjustment on the front face.
- Time settings are customizable on the front face.
- Mountable on a modular 35.5mm DIN rail.
- 0.3 to 60 hours programmable ON/OFF time intervals.
- Relay with 10A SPDT output.
- Relay and power supply ON LED indicator.
| Brand | Electrodev |
|---|
