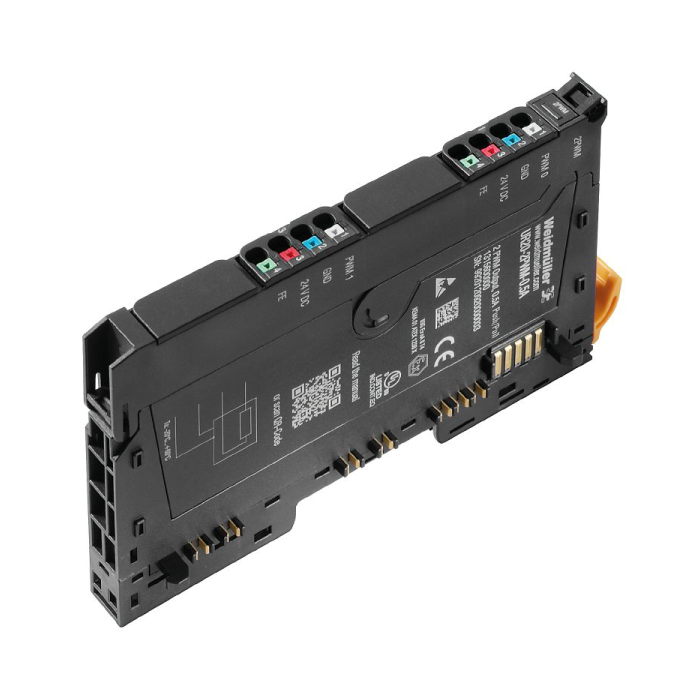

UR20-2PWM-PN-0.5A
Pricing available on request
Description:
- The UR20-2PWM-PN-0.5A is a compact, high-performance remote I/O module from the u-remote system.
- It has two short-circuit-proof PWM digital outputs with push/pull functionality, making it ideal for controlling small motors and valve actuators precisely.
- Ideal for robotics, handling systems, and automation activities that require flexible motor control.
Specifications:
- Module type: Functional module.
- Signal type: Digital (PWM).
- Channels: 2 digital outputs.
- Output type: Push/pull, short-circuit-proof.
- Fieldbus support: PROFINET IRT/RT, PROFIBUS DP-V1, EtherCAT, Modbus/TCP, EtherNet/IP, CANopen, DeviceNet, POWERLINK, CC-Link, CC-Link IE TSN.
- Mounting: TS 35 DIN rail.
- Protection class: IP20.
- Diagnosis: Module-level only (no individual channel diagnosis).
- Dimensions & Weight:
- Width: 11.5 mm.
- Height: 120 mm (128 mm mounting height).
- Depth: 76 mm.
- Net weight: 85 g.
- Environmental Conditions:
- Operating temperature: -20°C to +60°C.
- Storage temperature: -40°C to +85°C.
- Humidity: 10–95% (non-condensing).
- Shock resistance: 15 g over 11 ms (IEC 60068-2-27).
- Vibration resistance: 3.5 mm @ 5–8.4 Hz, 1 g @ 8.4–150 Hz.
- Electrical Characteristics:
- Output current per channel: max. 0.5 A.
- Output current per module: max. 1 A.
- Switching frequency: 6 Hz to 40 kHz (resistive, inductive, lamp loads).
- Pulse duty factor: 0–100% (parameterizable).
- Resolution: 32-bit.
- Response time (high/low): ≤ 100 ns.
- Voltage supply: 24 V DC ±20% / -15% via system bus.
- Current consumption:
- From system bus: 8 mA.
- From output segment (IOUT): 40 mA.
- Connection Details:
- Connection type: PUSH IN.
- Wire cross-section (solid/stranded): 0.14–1.5 mm².
- AWG range: 26–16.
- Actuator connection: 2-wire, 3-wire, 3-wire + FE.
- Galvanic isolation: 500 V DC between current paths.
- Compliance & Approvals:
- UL File Numbers: E141197 (cULus), E223527 (cULusEX).
- CE, ATEX, IECEx, DNV, UKCA, ClassNK, KOREANCERT.
- RoHS: Compliant with exemptions (7a, 7cI).
- REACH SVHC: Lead, Diboron trioxide, Lead monoxide.
- Flammability rating: UL 94 V-0.
- Pollution severity: 2.
- Surge category: II.
