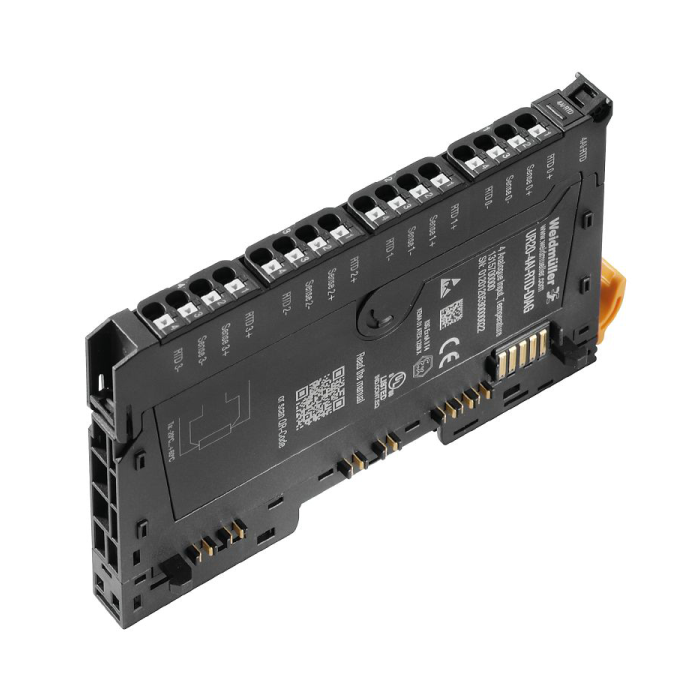

UR20-4AI-RTD-DIAG
Pricing available on request
UR20-4AI-RTD-DIAG:
- Weidmüller's digital input modules come in a variety of forms and are generally used to accept binary control signals from sensors, transmitters, switches, and proximity switches.
- They will meet your need for well-coordinated project planning with reserve potential because of its adaptable design.
- All modules are available in 4, 8, or 16 input configurations and completely conform with IEC 61131-2.
- The digital input modules are available in P- or N-switching configurations.
- The digital inputs are for Type 1 and Type 3 sensors as per the specification.
- They are utilized in a variety of applications and have a maximum input frequency of 1kHz.
- The variant for PLC interface units allows for quick connecting to the well-known Weidmüller interface sub-assemblies using system cables.
- This guarantees quick integration with your entire system.
- Two modules having a timestamp function can record binary signals and deliver a timestamp in 1μs resolution.
- The module UR20-4DI-2W-230V-AC, which operates with accusant current up to 230V as an input signal, opens up additional possibilities for solutions.
Dimensions and weights:
- Depth: 76 mm.
- Depth (inches): 2.992 inch.
- Height: 120 mm.
- Height (inches): 4.724 inch.
- Width: 11.5 mm.
- Width (inches): 0.453 inch.
- Mounting dimension - height: 128 mm.
- Net weight: 91 g.
Temperatures:
- Storage temperature: -40 °C... +85 °C.
- Operating temperature: -20 °C... +60 °C.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1.
- SCIP: 82327f13-cd27-455a-ab5b-a62e1996dcf8.
- RoHS Compliance Status: Compliant with exemption.
- RoHS Exemption (if applicable/known): 7a, 7cI.
analogue inputs:
- Accuracy: 0.2% FSR / 0.3% FSR for Ni sensors / 0.6% FSR for Cu10.
- Conversion time: adjustable 36…240 ms.
- Individual channel diagnosis: Yes.
- Internal resistance U: 1 MΩ.
- Measured temperature value, max.: 850 °C.
- Measured temperature value, min.: -200 °C.
- Module diagnosis: Yes.
- Number of analogue inputs: 4.
- Resolution: 16 Bit.
- Reverse polarity protection: Yes.
- Sensor connection: 2-wire, 3-wire, 4-wire.
- Temperature coefficient: ≤ 50 ppm/K.
- Type: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni 200, Ni500, Ni1000, Cu10, 40Ω, 80Ω, 150Ω, 300Ω, 500Ω,1kΩ, 2kΩ,4kΩ.
Connection data:
- Type of connection: PUSH IN.
- Wire connection cross section, finely stranded, max.: 1.5 mm².
- Wire connection cross section, finely stranded, min.: 0.14 mm².
- Wire cross-section, finely stranded, max. (AWG): AWG 16.
- Wire cross-section, finely stranded, min. (AWG): AWG 26.
- Wire cross-section, solid, max.: 1.5 mm².
- Wire cross-section, solid, max. (AWG): AWG 16.
- Wire cross-section, solid, min.: 0.14 mm².
- Wire cross-section, solid, min. (AWG): AWG 26.
General data:
- Air humidity (operation): 10% to 95%, non-condensing as per DIN EN 61131-2.
- Air humidity (storage): 10% to 95%, non-condensing as per DIN EN 61131-2.
- Air humidity (transport): 10% to 95%, non-condensing as per DIN EN 61131-2.
- Air pressure (operation): ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2.
- Air pressure (storage): 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2.
- Air pressure (transport): 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2.
- Pollution severity: 2.
- Rail: TS 35.
- Shock: 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27.
- Surge voltage category: II.
- Test voltage: 500 V.
- UL 94 flammability rating: V-0.
- Vibration resistance: 5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6.
Power supply:
- Current consumption from IIN (the respective power segment): < 20 mA.
- Current consumption from Isys, typ.: 8 mA.
- Reverse polarity protection: Yes.
- Voltage supply: 24 V DC +20 %/ -15 % via the system bus.
System data:
- Diagnostic data: 20 Byte.
- Field bus protocol:
- CANopen.
- DeviceNet.
- EtherCAT.
- EtherNet/IP.
- Modbus/TCP.
- PROFINET IRT.
- PROFIBUS DP-V1.
- POWERLINK.
- Galvanic isolation: DC 500 V between current paths.
- Interface: u-remote system bus.
- Module type: Temperature module.
- Parameter data: 32 Byte.
- Process data: 8 Byte.
- Transmission speed of system bus, max.: 48 Mbit.
