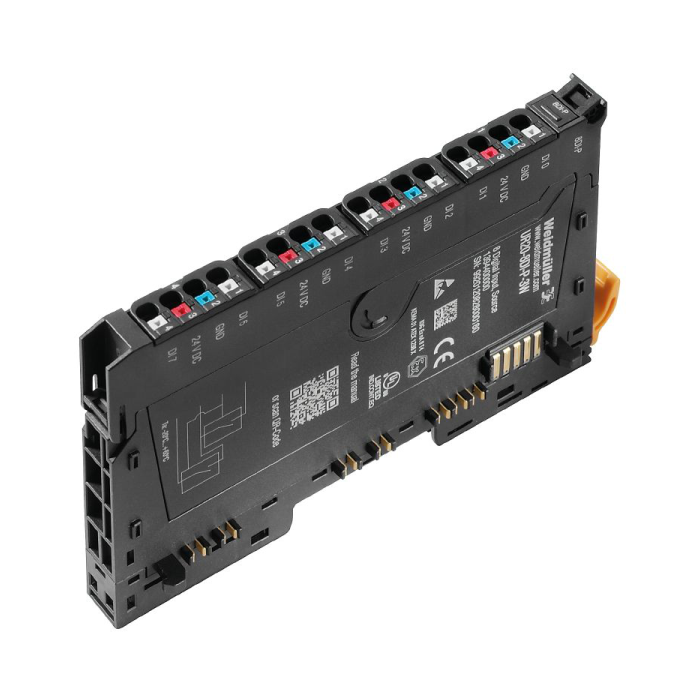

UR20-8DI-P-3W
UR20-8DI-P-3W:
- Weidmüller offers a variety of variants of its digital input modules, which are mostly used to receive binary control signals from switches, proximity switches, transmitters, and sensors.
- They will meet your need for well-coordinated project planning with reserve potential because of its adaptable design.
- All modules are available in 4, 8, or 16 input configurations and completely conform with IEC 61131-2.
- The digital input modules are available in P- or N-switching configurations.
- The digital inputs are for Type 1 and Type 3 sensors as per the specification.
- These devices have a maximum input frequency of 1 kHz and can be utilized for a variety of applications.
- The PLC interface unit variation uses system cables to quickly connect to the well-known Weidmüller interface sub-assemblies.
- This provides a quick integration into your overall system.
- Two modules with a timestamp function can collect binary signals and provide a resolution of 1μs.
- The UR20-4DI-2W-230V-AC module, which accepts a currant up to 230V as an input signal, opens other solutions.
- The module electronics draw energy from the input current path (UIN) to power the associated sensors.
Specifications dimensions and weights:
- Depth: 76 mm.
- Depth (inches): 2.992 inch.
- Height: 120 mm.
- Height (inches): 4.724 inch.
- Width: 11.5 mm.
- Width (inches): 0.453 inch.
- Mounting dimension - height: 128 mm.
- Net weight: 83 g.
Temperatures:
- Storage temperature: -40 °C - +85 °C.
- Operating temperature: -20 °C - +60 °C.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1.
- SCIP: 82327f13-cd27-455a-ab5b-a62e1996dcf8.
Digital inputs:
- Individual channel diagnosis: No.
- Input filter: configurable.
- Input voltage, high: > 11 V.
- Input voltage, low: <5 V.
- Module diagnosis: Yes.
- Number of digital inputs: 8.
- Reverse polarity protection: Yes.
- Sensor connection: 2-wire, 3-wire.
- Sensor supply: Yes.
- Sensor supply:
- minimum: 0 mA.
- nominal: 750 mA.
- maximum: 8,000 mA.
- Type: Types 1 and 3, EN 61131-2.
Connection data:
- Type of connection: PUSH IN.
- Wire connection cross section, finely stranded, maximum: 1.5 mm².
- Wire connection cross section, finely stranded, minimum: 0.14 mm².
- Wire cross-section, finely stranded, maximum (AWG): AWG 16.
- Wire cross-section, finely stranded, minimum (AWG): AWG 26.
- Wire cross-section, solid, maximum: 1.5 mm².
- Wire cross-section, solid, maximum (AWG): AWG 16.
- Wire cross-section, solid, minimum: 0.14 mm².
- Wire cross-section, solid, minimum (AWG): AWG 26.
General data:
- Air humidity (operation): 10% to 95%, non-condensing as per DIN EN 61131-2.
- Air humidity (storage): 10% to 95%, non-condensing as per DIN EN 61131-2.
- Air humidity (transport): 10% to 95%, non-condensing as per DIN EN 61131-2.
- Air pressure (operation): ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2.
- Air pressure (storage): 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2.
- Air pressure (transport): 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2.
- Pollution severity: 2.
- Rail: TS 35.
- Shock: 15 g over 11 ms, half sinus wave, acc.to IEC 60068-2-27.
- Surge voltage category: II.
- Test voltage: 500 V.
- UL 94 flammability rating: V-0.
- Vibration resistance: 5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6.
Power supply:
- Current consumption from IIN (the respective power segment): <22 mA + sensor feed.
- Current consumption from Isys, typ.: 8 mA.
- Reverse polarity protection: Yes.
- Voltage supply: 24 V DC +20 %/ -15 % via the system bus.
System data:
- Diagnostic data: 1 Bit.
- Field bus protocol: PROFINET IRT, PROFINET RT, CC-Link IE TSN, IEC 61162-450, PROFIBUS DP-V1, EtherCAT, Modbus/TCP, EtherNet/IP, CANopen, DeviceNet, POWERLINK, CC-Link.
- Galvanic isolation: 500 V DC between the current paths.
- Interface: u-remote system bus.
- Module type: Digital input module.
- Possible connection: 3-wire, Single-conductor, 2-wire.
- Process data: 1 Byte.
- Transmission speed of system bus, maximum: 48 Mbit.
| Brand | Weidmuller |
|---|
