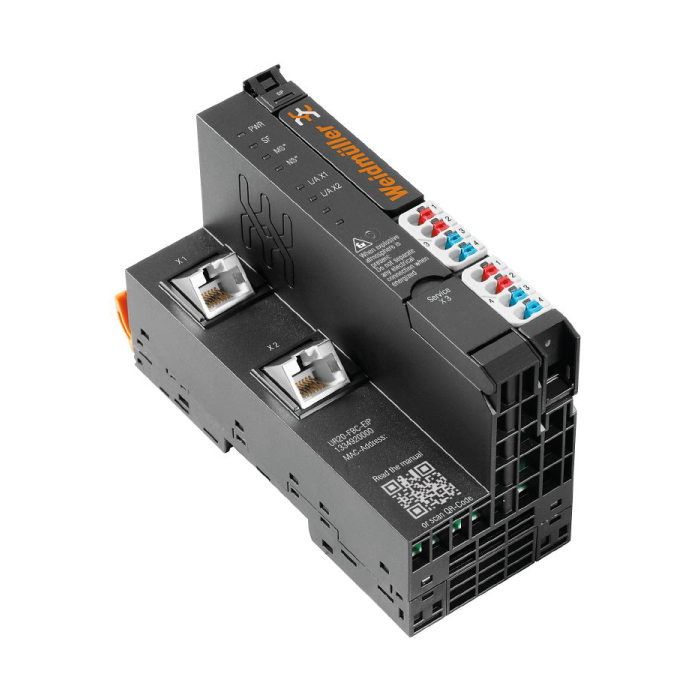

UR20-FBC-EIP

ZAR 0.00 ZAR 0.00
Out of stock
SKU
1334920000

Pricing available on request

UR20-FBC-EIP:

  • Weidmuller u-remote is a novel remote I/O concept with IP 20 that focuses solely on user benefits: tailored planning, faster installation, safer start-up, and no downtime, resulting in significantly better performance and productivity.
  • Reduce the size of your cabinets with u-remote, which has the smallest modular design on the market and requires fewer power-feed modules.
  • Our u-remote technology enables tool-free construction, while the modular "sandwich" design and integrated web server expedite installation in both the cabinet and machine.
  • Status LEDs on the channel and each u-remote module enable accurate diagnosis and quick service.
  • Our products increase the availability of your machines and systems while ensuring seamless processes from planning to operation.
  • The acronym for "More Performance" is u-remote. simplified.

Dimensions and weights:

  • Depth: 76 mm.
  • Depth (inches): 2.992 inch.
  • Height: 120 mm.
  • Height (inches): 4.724 inch.
  • Width: 52 mm.
  • Width (inches): 2.047 inch.
  • Mounting dimension - height: 128 mm.
  • Net weight: 223 g.

Temperatures:

  • Storage temperature: -40 °C... +85 °C.
  • Operating temperature: -20 °C... +60 °C.

Environmental Product Compliance:

  • REACH SVHC: Lead 7439-92-1, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1.
  • SCIP: 98e19a7e-033b-4e68-93e3-c47b30de875e.
  • RoHS Compliance Status: Compliant with exemption.
  • RoHS Exemption (if applicable/known): 7a, 7cI.

Connection data:

  • Type of connection: PUSH IN.
  • Wire connection cross section, finely stranded, max.: 1.5 mm².
  • Wire connection cross section, finely stranded, min.: 0.14 mm².
  • Wire cross-section, finely stranded, max. (AWG): AWG 16.
  • Wire cross-section, finely stranded, min. (AWG): AWG 26.
  • Wire cross-section, solid, max.: 1.5 mm².
  • Wire cross-section, solid, max. (AWG): AWG 16.
  • Wire cross-section, solid, min.: 0.14 mm².
  • Wire cross-section, solid, min. (AWG): AWG 26.

General data:

  • Air humidity (operation): 10% to 95%, non-condensing as per DIN EN 61131-2.
  • Air humidity (storage): 10% to 95%, non-condensing as per DIN EN 61131-2.
  • Air humidity (transport): 10% to 95%, non-condensing as per DIN EN 61131-2.
  • Air pressure (operation): ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2.
  • Air pressure (storage): 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2.
  • Air pressure (transport): 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2.
  • Pollution severity: 2.
  • Rail: TS 35.
  • Shock: 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27.
  • Surge voltage category: II.
  • Test voltage: 500 V.
  • UL 94 flammability rating: V-0.
  • Vibration resistance: 5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6.

Power supply:

  • Current consumption from Isys, typ.: 112 mA mA.
  • Feed current for IIN (input current path):
    • min.: 10,000 mA.
    • nominal: 10,000 mA.
    • max.: 10,000 mA.
  • Feed current for IIN (input current path), max.: 10 A.
  • Feed current for IOUT (output current path):
    • min.: 10,000 mA.
    • nominal: 10,000 mA.
    • max.: 10,000 mA.
  • Feed current for IOUT (output current path), max.: 10 A.
  • Feed current for the system, max.: 4 A.
  • Supply voltage for outputs: 24 V DC +20 %/ -15 %.
  • Supply voltage system and inputs: 24 V DC +20 %/ -15 %.
  • Voltage supply: 24 V DC +20 %/ -15 %, via the system bus.

System data:

  • Configuration interface: Micro USB 2.0.
  • Connection type: 2x RJ45 plug-in connectors.
  • Diagnostic data: 3,008 Byte.
  • Field bus protocol: EtherNet/IP.
  • Interface: u-remote system bus.
  • max. number of modules: 64.
  • Module type: Bus coupler.
  • Parameter data: 4 kByte.
  • Process data: 988 Byte.
  • Transmission rate of field bus, max.: 100 kbit/s.
  • Transmission speed of system bus, max.: 48 Mbit/s.

Important note:

  • Product information: The matching end brackets are included with the coupler.
