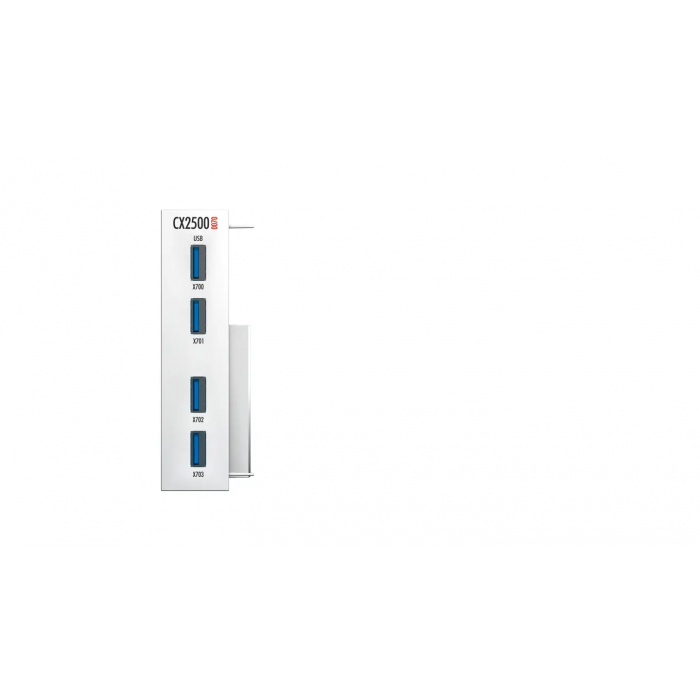

USB 3.0 module CX2500-0070
The system modules for the CX20xx family are connected to the CPU on the left-hand side via a multi-pin connector. Internally they are connected via PCI Express. Up to four modules can be connected in any order.
The CX2500-0070 USB module adds up to four further USB 3.0 interfaces.
Interfaces: 4 x USB 3.0 (max. 2 A total current)
Type of connection: 4 x USB 3.0, type A
Power supply: via system bus (through CX2100-0xxx power supply modules)
Dimensions (W x H x D): 24 mm x 99 mm x 54.5 mm
Weight: approx. 195 g
Relative humidity: 95 %, no condensation
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protection rating: IP20
| SKU | CX2500-0070 |
|---|
