UV21-B-IPC-1011
Pricing available on request
Description:

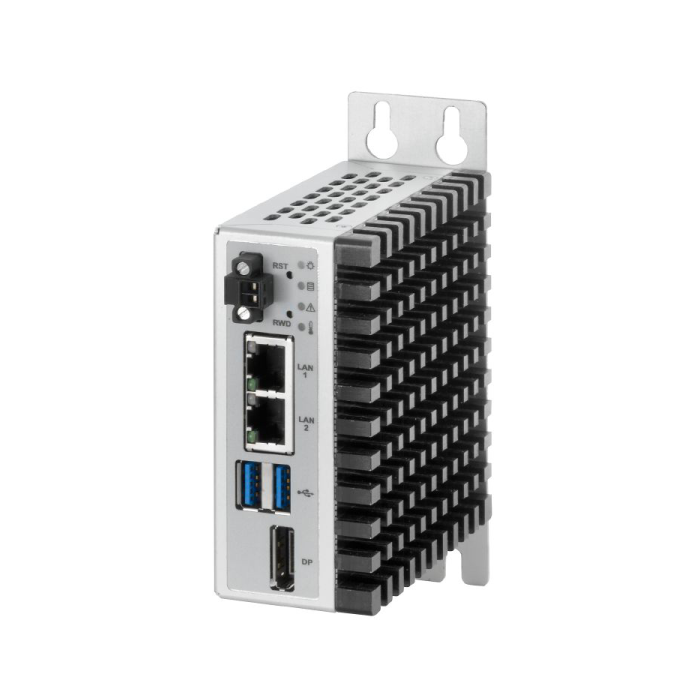

- The ultra-compact IPC 1000 is a fan-less, entry-level industrial PC designed for wall and rail mounting.
- The IPC 1000 includes two Ethernet interfaces with 10/100/1000 Mbps, two USB 3.0 ports, and a display connection.
- The IPC can run Windows 10 IoT Enterprise 2019 or other operating systems.
- Its space-saving enclosure allows for flexible application and effectively bridges the gap to embedded hardware.
- It is maintenance-free and well-suited for automation and visualization applications due to its passive cooling and sturdy aluminium enclosure.
Specifications:
- Dimensions and Weight:
- Depth: 101.5 mm.
- Height: 140 mm.
- Width: 43.4 mm.
- Net weight: 350 g.
- Temperatures:
- Storage temperature: -10 °C ... +60 °C.
- Operating temperature: 0 °C ... +50 °C.
- Humidity: 80 % relative humidity (without condensation).
- Current consumption: 0.96 A.
- Operating system: Windows 10 IoT Enterprise LTSC 2019 64bit.
- Protection degree: IP20.
- Voltage supply: 24 V DC (18-32 V DC) isolated.
- System data:
- Interfaces in front: 2 x Ethernet 10/100/1000 MBit/s (RJ45), 2x USB 3.0, 1x Displayport™.
- Memory (RAM): 4 GB, DDR4, soldered.
- Memory: 64 GB m.2 SSD.
- Processor: Intel Atom® x7-E3950 - Quad Core 1.6 GHz (2.0 GHz Burst).
- Operating system: Windows 10 IoT Enterprise LTSC 2019 64bit.
| SKU | 2665800000 |
|---|---|
| Brand | Weidmuller |
