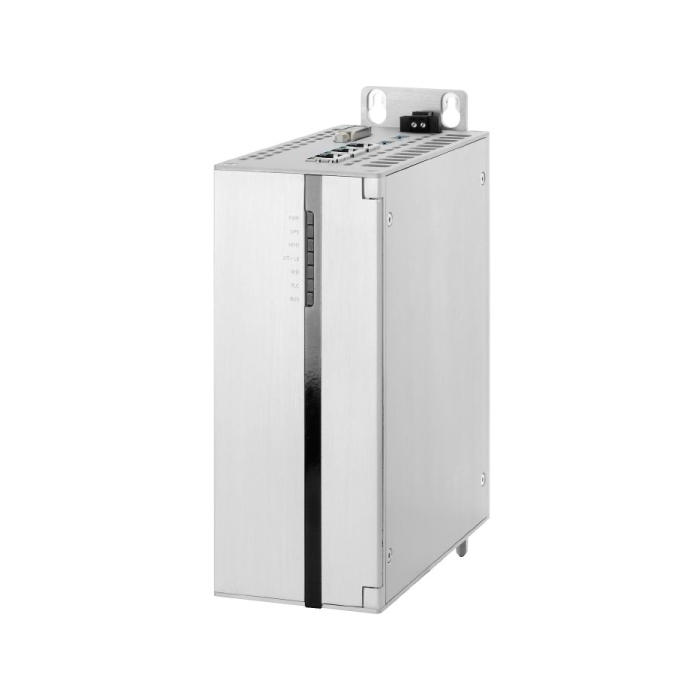

UV20-B-IPC-3031.01
Pricing available on request
Description:
- The fan-less IPC 3000 is a durable and high-performance industrial PC that meets the most stringent performance, design, and adaptability requirements.
- There are three Ethernet 10/100/1000Mbps connectors, two USB 3.0 ports, and one DVI visual output on top.
- Another USB 3.0 connector, a CFast card slot, a CMOS battery compartment, and system/status LEDs are located on the front, protected by the front flap.
- SSD hard drives with up to 120GB of storage and entirely passive cooling improve longevity while also increasing data processing speed.
- With the Windows 10 IoT Enterprise 2019 operating system as an ideal and versatile working platform, the IPC 3000 provides a highly functional and flexible industrial computer system.
Specifications:
- Dimensions and Weight:
- Depth: 159.5 mm.
- Height: 220 mm.
- Width: 71 mm.
- Net weight: 1,800 g.
- Temperatures:
- Storage temperature: -10 °C ... +60 °C.
- Operating temperature: 0 °C ... +50 °C.
- Humidity: 80 % relative humidity (without condensation).
- Current consumption:
- Voltage: 24 V.
- Current: 1.96 A.
- Operating system: Windows 10 IoT Enterprise LTSC 2019 64bit.
- Protection degree: IP20.
- Voltage supply: 24 V DC (18-32 V DC) isolated.
- Battery: Type CR2032.
- Interfaces above: 3x Ethernet 10/100/1000 MBit/s (RJ45), 2x USB 3.0, 1x DVI-D.
- Interfaces in front: 1x Cfast slot, 1x USB 3.0.
- Memory: 120 GB mSATA SSD.
- Memory (RAM): 8 GB, DDR4.
- Operating system: Windows 10 IoT Enterprise LTSC 2019 64bit.
- Processor: Intel® Core™ i7-6600U - Dual Core 2.6 GHz (3.4 GHz Turbo).
| SKU | 2665820000 |
|---|---|
| Brand | Weidmuller |
