UV66-ADV-7-IPPC-1001.01
Pricing available on request
Description:

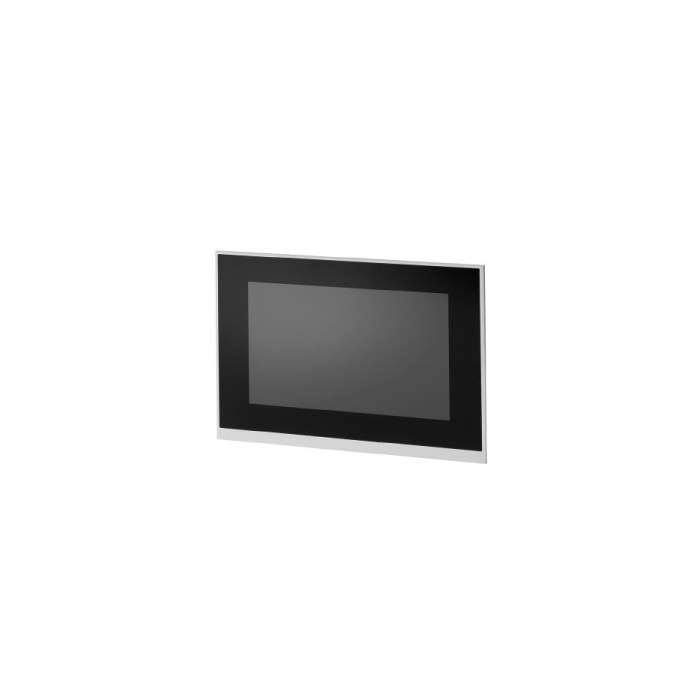

- The built-in IPPC 1000 is an entry-level industrial panel PC.
- Operating touch panels range in size from 7" to 15.6" and feature resistive single- or capacitive multi-touch (BASIC or ADVANCED versions).
The IPPC 1000 provides cutting-edge connectivity with two Ethernet 10/100/1000Mbps ports that feature "Wake on Lan" and several USB ports. - The IPPC 1000 has a 60GB SSD hard drive and a CFast card port for external storage.
- The IPPC 1000 product series, powered by the Intel Celeron™ J1900 2GHz 64-bit quad-core processor, 4GB RAM memory, and Windows 10 IoT Enterprise 2019 operating system, offers versatile applications.
Specifications:
- Dimensions and Weights:
- Depth: 77.6 mm.
- Height: 148 mm.
- Width: 204 mm.
- Wall thickness, min.: 2 mm.
- Wall thickness, max.: 6 mm.
- Net weight: 1,800 g.
- Temperatures:
- Storage temperature: -20 °C ... +60 °C.
- Operating temperature: 0 °C ... +50 °C.
- Humidity: 80 % relative humidity (without condensation).
- Current consumption:
- Voltage: 24 V.
- Current: 1.13 A.
- Operating system: Windows 10 IoT Enterprise LTSC 2019 64bit.
- Protection degree: IP66.
- Voltage supply: 24 V DC (18-32 V DC) isolated.
- Interfaces behind: 2 x Ethernet 10/100/1000 MBit/s (RJ45), 1x USB 3.0, 3x USB 2.0, 1x Cfast slot.
- Memory: 60 GB mSATA SSD.
- Memory (RAM): 4 GB, DDR3.
- Operating system: Windows 10 IoT Enterprise LTSC 2019 64bit.
- Processor: Intel® Celeron® J1900 - Quad Core 2.0 GHz (2.42 GHz Burst).
Equipment:
- Angle (horizontal): Left: 80° / Right: 80°.
- Angle (vertical): Top: 80° / Bottom: 80°.
- Luminance: 400 cd/m².
- Material display: Glass.
- Material frame: Aluminium.
- Number of displayable colours: 16 M.
- Resolution: 800 x 480.
- Size: 7".
- Touch-Screen: capacitive, Multitouch.
| SKU | 2665830000 |
|---|---|
| Brand | Weidmuller |
