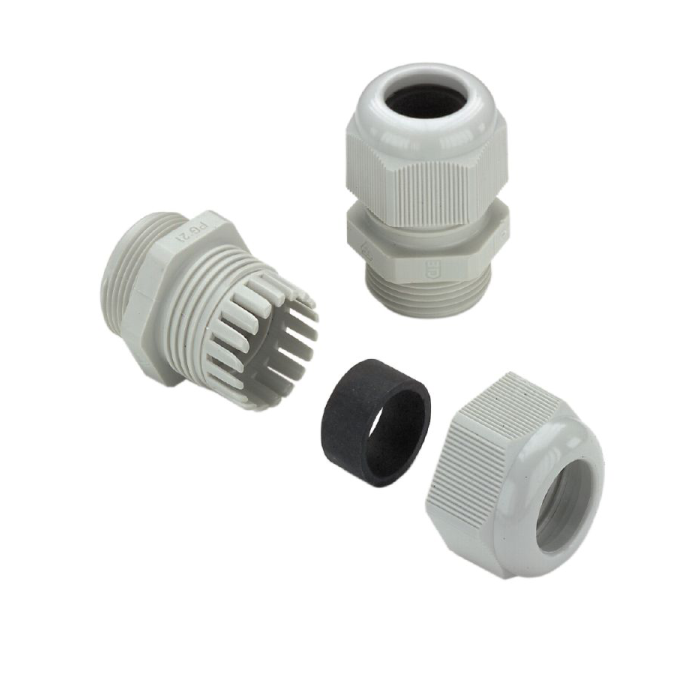

VG M20-1/K68, Cable glands, straight, M 20
Description:
- Weidmüller's VG M20-1/K68 cable gland is an excellent product meant for common industrial uses.
- This model is among the many cable entry systems and parts that Weidmüller offers; they are renowned for their dependability and robustness in a variety of settings.
Specifications:
- Model: VG M20-1/K68.
- Item Number: 1772300000.
- Type: Standard plastic cable gland.
- Thread Type: M20.
- Cable Diameter Range:
- Minimum: 6 mm.
- Maximum: 12 mm.
- Ingress Protection:
- IP54 (without sealing ring).
- IP66, IP67, IP68 (with sealing ring, up to 5 bar for 30 minutes).
- Material: Polyamide 6.
- Dimensions:
- Height: 29.5 mm.
- Length: 39.5 mm.
- Net Weight: 11.04 g.
- Temperature Range: Operating: -40°C to +100°C.
- Torque:
- Clamping: 3.5 Nm to 4.5 Nm.
- Locking: 3 Nm to 4 Nm.
- Compliance:
- REACH Conformity: Yes.
- RoHS Conformity: Yes.
| Brand | Weidmuller |
|---|
