Specifications:

• Model: VG M32-1/K68.
• Item Number: 1909880000.

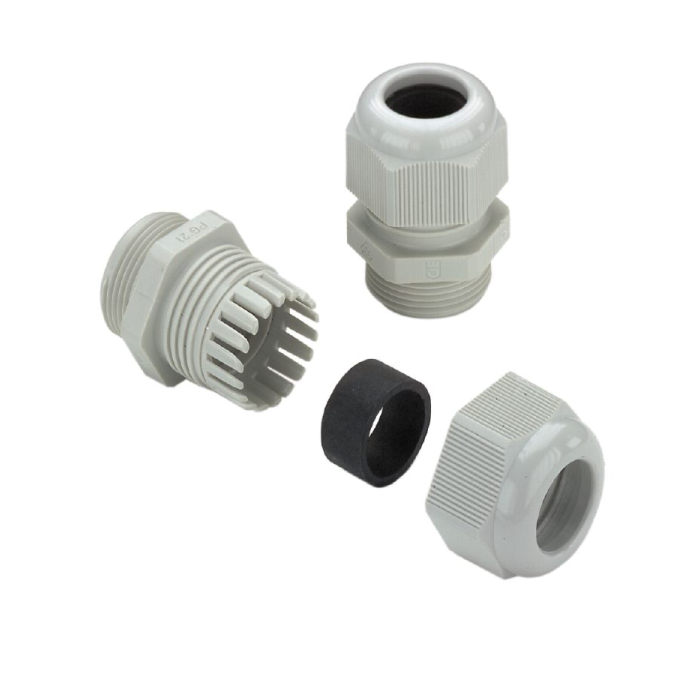

• Type: Standard plastic cable gland.
• Thread Type: M32.
• Cable Diameter Range:
• Minimum: 18 mm.
• Maximum: 25 mm.
• Ingress Protection:
• IP54 (without sealing ring).
• IP66, IP67, IP68 (with sealing ring, up to 5 bar for 30 minutes).
• Material: Polyamide 6.
• Dimensions:
• Height: 42 mm.
• Length: 53 mm.
• Net Weight: 28.5 g.
• Temperature Range: Operating: -40°C to +100°C.
• Torque:
• Clamping: 5 Nm.
• Locking: 6 Nm to 7 Nm.
• Compliance:
• REACH Conformity: Yes.
• RoHS Conformity: Yes.
