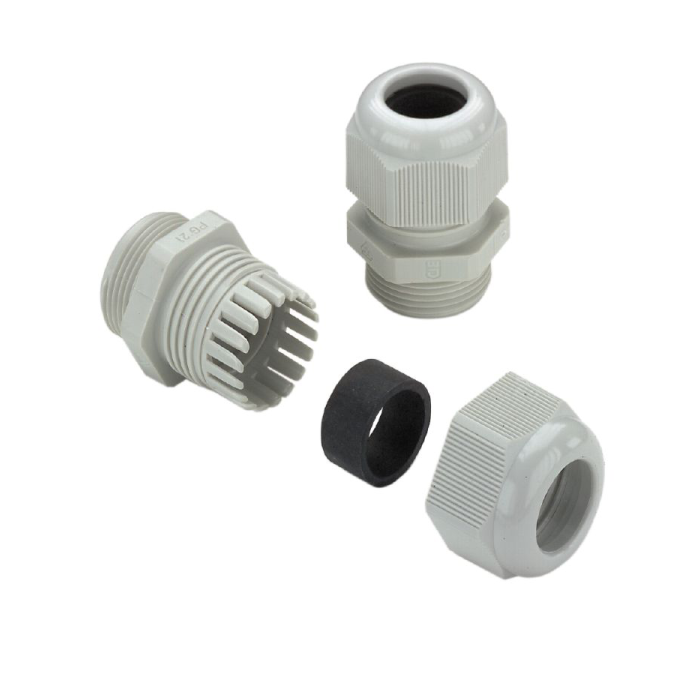

VG M50 - K 68, Cable glands, straight, M 50
Description:
- For industrial applications, the sturdy Weidmüller VG M50 - K 68 cable gland ensures dependable and safe cable entry.
- This type is a member of the VG series from Weidmüller, which is renowned for its robust and high-quality parts.
Specifications:
- Model: VG M50 - K 68.
- Item Number: 1772340000.
- Type: Standard plastic cable gland.
- Thread Type: M50.
- Cable Diameter Range:
- Minimum: 30 mm.
- Maximum: 38 mm.
- Ingress Protection:
- IP54 (without sealing ring).
- IP66, IP67, IP68 (with sealing ring, up to 5 bar for 30 minutes).
- Material: Polyamide 6.
- Dimensions:
- Height: 53 mm.
- Length: 71 mm.
- Net Weight: 94.6 g.
- Temperature Range: Operating: -40°C to +100°C.
- Torque:
- Clamping: 8 Nm.
- Locking: 7.5 Nm to 8.5 Nm.
- Compliance:
- REACH Conformity: Yes.
- RoHS Conformity: Yes.
| Brand | Weidmuller |
|---|
