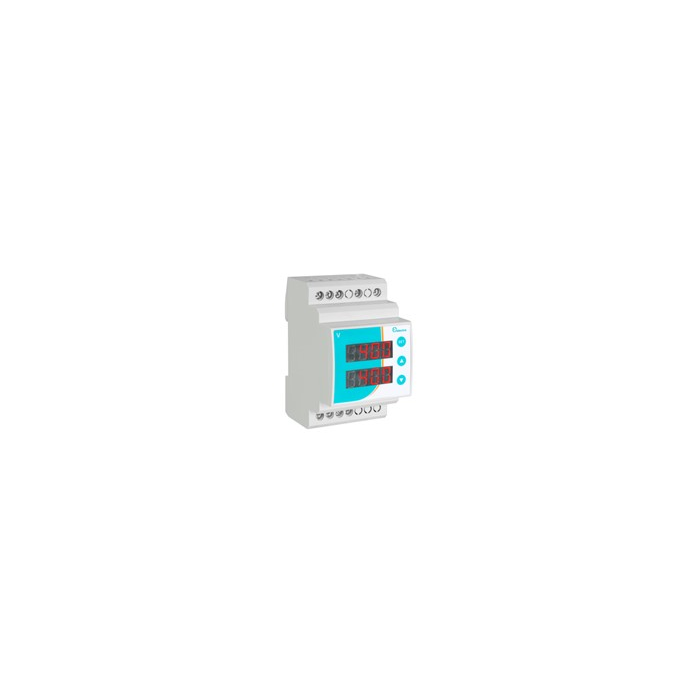

VOLTAGE COMPARATOR 400VAC
Digital voltage monitor:
- Compact modular modules in the Electro D series of control and timing devices make it simple to integrate them into distribution boards or standard panels.
- They align with ordinary tiny circuit breakers (MCBs) and attach straight onto DIN rail.
- Digital voltage window comparator timer with many functions and range for monitoring supply voltage between two levels.
Features:
- Distinct source.
- Modifiable wait times.
- Reversing the phase of three-phase units.
- Two relay outputs, one for each function.
- Monitoring of voltage and frequency both above and below.
Specifications:
- DESCRIPTION: Three phase digital voltage monitor
- CONTACT: 2 x 6A SPDT
- PHASE: Three
- TIME RANGE: 4-time ranges (999.9s - 9999 min)
- RATED VOLTAGE: 250V
- MECHANICAL LIFE: 10x106 cycles
- PROTECTION INDEX IP: IP 20
- OPERATING TEMPERATURE: -10 to + 50°C
- STORAGE TEMPERATURE: -50 to + 85°C
- DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
| Brand | Electrodev |
|---|
