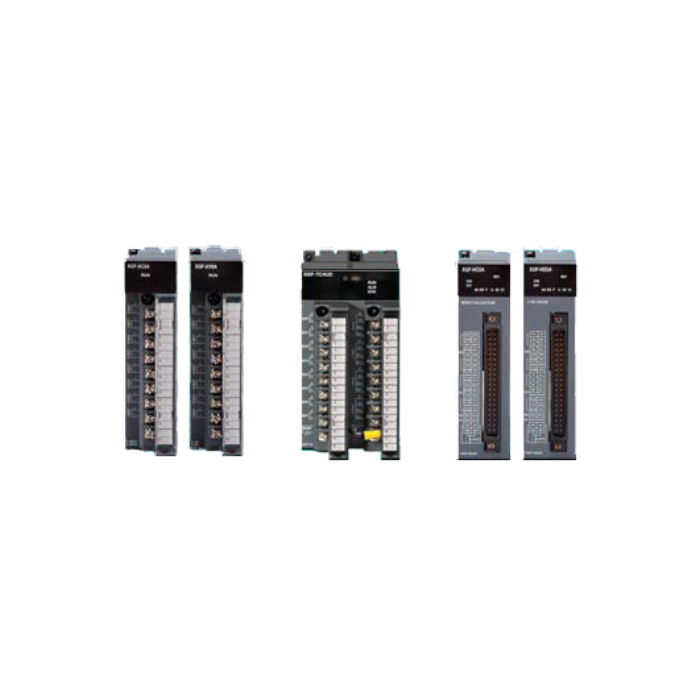

XGT Special Analog Input Module 4 channels, voltage/current input, 610 mA
Features:
- Quick processing of conversions.
- High level of resolution.
- Using XG5000, set and track the special module parameter.
- Four different digital output data formats are supported.
Specifications:
- A/D Resolution: 16Bit.
- Current Consumption: 610mA.
- Insulation between channels insulated.
- Input Type: DC 1~5V 0~5V 0~10V -10~10V 4~20mA 0~20mA.
- Analogue input: DC1-5V, 0-10V, -10-10V/ DC 4-20Ma, 0-20mA.
- Digital input: Signed value: -32.000-32.000.
- Insulation method: Photo-coupler insulation between terminal and power supply, insulation between channels.
- Connection terminal:18 points.
- Transaction Speed: 250µs (per channel).
- Total Number of I/O: 18.
- Product Category: Modular PLC (XGK).
- Product Type: Analogue Input.
- Max. absolute input: Voltage: ±15V Current: ±30mA.
- No. of input channel: 4 channels.
- Weight (Kg): 0.14.
- XGT LS High Performance, Rack-Type PLC, XGI / XGR / XGK.
- Analogue Input Modules.
| Brand | LS Electric |
|---|
