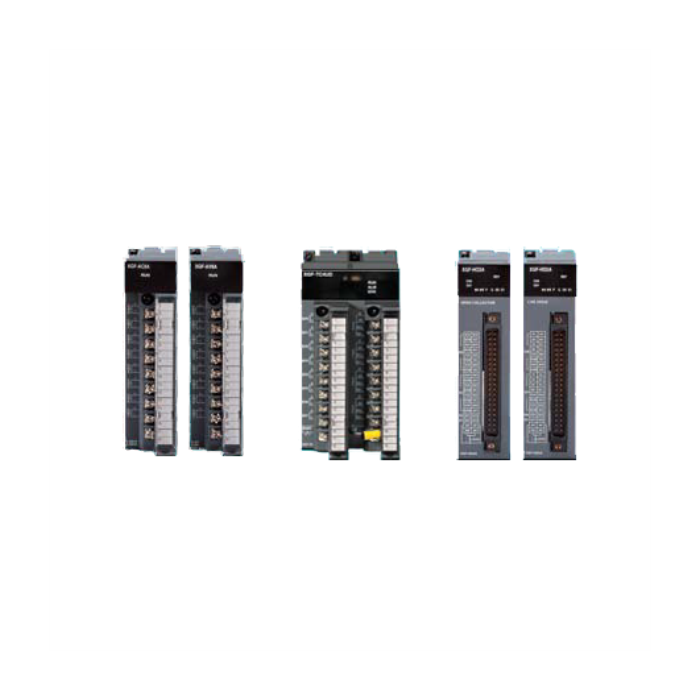

XGT Special Analog Input Module, 8 channels, voltage
Features:
- Quick processing of conversions.
- High level of resolution.
- Using XG5000, set and track the special module parameter.
- Four different digital output data formats are supported.
Specifications:
- Analogue input: DC 1-5V, 0-5V, 0-10V, -10-10V
- Digital output: Unsigned value: 0-16.000, Signed value: -8000-8.000.
- Insulation method: Photo-coupler insulation between input terminal and power supply, no insulation between channels.
- Connection terminal: 18 points
- I/O Points: Variable type (dissolving in basic parameter) 16 points
- A/D Resolution: 14Bit
- Current Consumption: 420mA
- Transaction Speed: 250µs (per channel)
- Total Number of I/O: 18
- Product Category: Modular PLC (XGK)
- Product Type: Analog Input
- Number of input channel: 8 channels
- Max. absolute input: 15V
- Weight (Kg): 0.14
- XGT LS High Performance, Rack-Type PLC, XGI / XGR / XGK
- Analogue Input Modules
| Brand | LS Electric |
|---|
