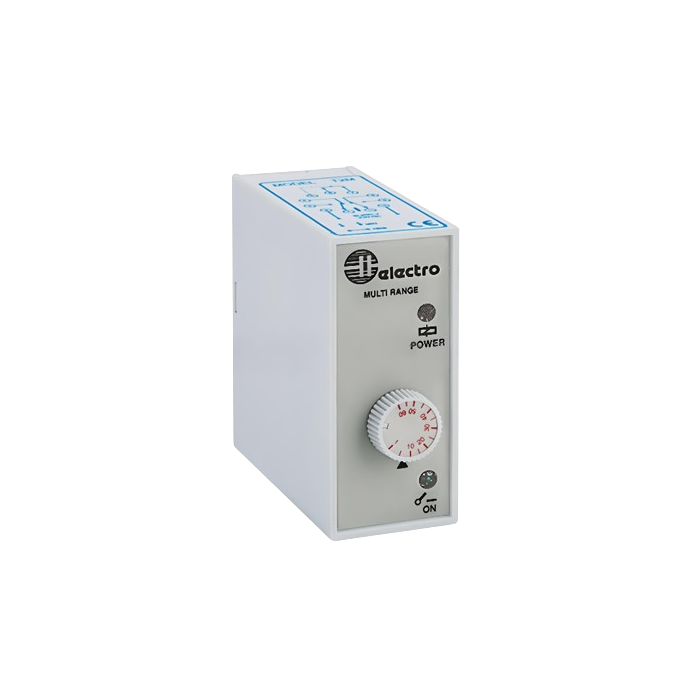

VOLTAGE MONITOR 40-400VAC, 230VAC
Voltage Indicator:
- Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
- An accurate UNDER/OVER voltage monitoring relay is the V1C.
- The device is perfect for a variety of voltage monitoring applications because it can be ordered in a wide range of AC and DC voltages.
- Separate potentiometers can be used to modify the hysteresis and set point.
- Additionally, the machine has a latch feature to stop unnoticed malfunctions.
Features:
- Integrated SPDT relay latch facility with 10A output.
- Isolated input voltage measurement.
- Relay monitoring for voltage regulation.
- Light-emitting diode (LEO) with relay on.
- Potentiometer with movable voltage thresholds.
- Adjustable hysteresis limits via potentiometer.
- Selecting the rear DIP switch for a 10-second startup delay.
- Selection of UNDER/OVER voltage via rear DIP switch.
Voltage monitor:
- CONTACT: 10A SPDT
- FUNCTION: Over or under
- STANDARD MEASURING RANGES: 4, 40, 400VAC/DC
- HYSTERESIS: 5-50%
- RATED VOLTAGE: 250V
- MECHANICAL LIFE: 10x106 cycles
- PROTECTION INDEX IP: IP 20
- OPERATING TEMPERATURE: -10 to + 50°C
- STORAGE TEMPERATURE: -50 to + 85°C
- DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
| Brand | Electrodev |
|---|
