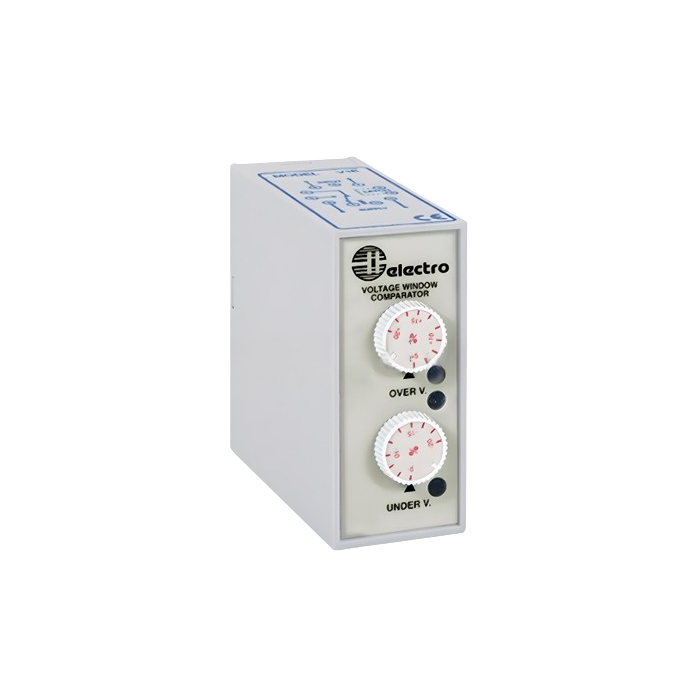

VOLTAGE MONITOR RELAY 1 PHASE 230VAC
Monitoring of over/under voltage (including phase breakdown):
- Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
- Keeps an eye on their own supply.
- The relay will only function if all three phases are present and in order and the supply voltage is between the predetermined OVER and UNDER voltage limitations.
- Supplying efficient protection and supervision for the power supply.
Features:
- 10A SPDT output with a 10-second startup lag.
- 180-second reaction delay was introduced into the latch facility.
- Protection against over- and under-voltage.
- Actions regarding one's own power source.
- LED indication of excess or low voltage.
- Limits, both upper and lower individually adjustable.
- Limits, both upper and lower individually adjustable.
- Protection against phase failure and phase reversal.
- Checks to see if the phase-to-neutral voltage is present, within specified bounds, and in order.
- Measurement and monitoring relays for controlling the neutral voltage in the upper and lower phases.
Over / under voltage monitor (incorporating phase failure):
- CONTACT: 10A SPDT
- PHASE: Single phase
- FUNCTION: Over and under
- RATED VOLTAGE: 250V
- MECHANICAL LIFE: 10x106 cycles
- PROTECTION INDEX IP: IP 20
- OPERATING TEMPERATURE: -10 to + 50°C
- STORAGE TEMPERATURE: -50 to + 85°C
- DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
| Brand | Electrodev |
|---|
