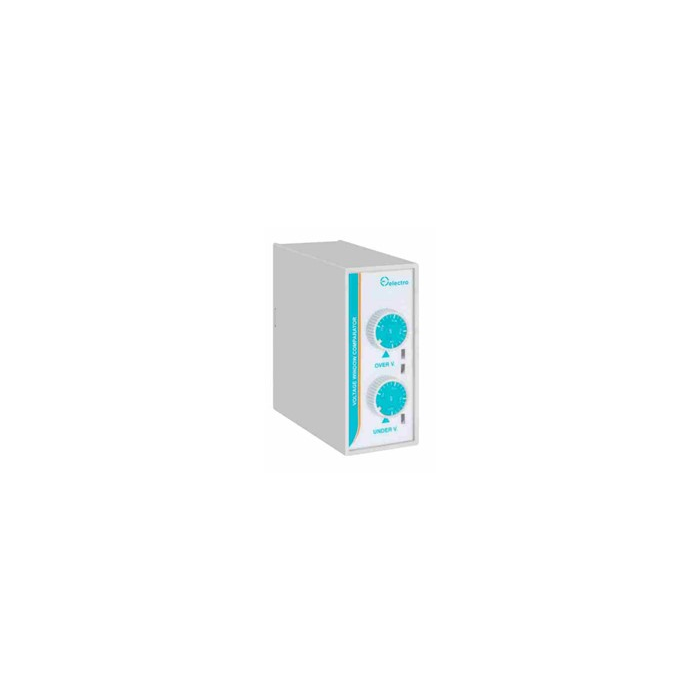

VOLTAGE MONITOR RELAY 3 PHASE 110VAC

ZAR 814.80
Out of stock
SKU
V3E110A

Monitoring of over/under voltage (including phase breakdown):

  • Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
  • Keeps an eye on their own supply.
  • The relay will only function if all three phases are present and in order and the supply voltage is between the predetermined OVER and UNDER voltage limitations.
  • Supplying efficient protection and supervision for the power supply.

Features:

  • 10A SPDT output with a 10-second startup lag.
  • 180-second reaction delay was introduced into the latch facility.
  • Protection against over- and under-voltage.
  • Actions regarding one's own power source.
  • LED indication of excess or low voltage.
  • Limits, both upper and lower individually adjustable.
  • Limits, both upper and lower individually adjustable.
  • Protection against phase failure and phase reversal.
  • Checks to see if the phase-to-neutral voltage is present, within specified bounds, and in order.
  • Measurement and monitoring relays for controlling the neutral voltage in the upper and lower phases.

Over / under voltage monitor (incorporating phase failure):

  • CONTACT: 10A SPDT
  • PHASE: Three phases
  • FUNCTION: Over and under
  • RATED VOLTAGE: 250V
  • MECHANICAL LIFE: 10x106 cycles
  • PROTECTION INDEX IP: IP 20
  • OPERATING TEMPERATURE: -10 to + 50°C
  • STORAGE TEMPERATURE: -50 to + 85°C
  • DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
More Information
Brand Electrodev
