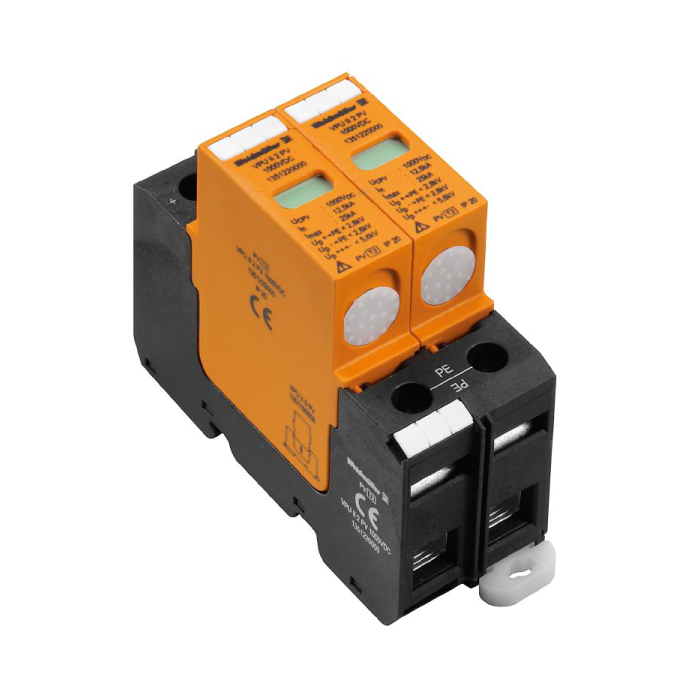

Temperatures:

• Storage temperature: -40 °C...80 °C.
• Operating temperature: -40 °C...70.

Environmental Product Compliance:

• REACH SVHC: /.
• RoHS Compliance Status: Compliant without exemption.

General data:

• Colour: black, orange.
• Design: Installation housing; 2TE, Insta IP 20.
• Operating altitude: ≤ 2000 m.
• Optical function display: green = OK; red = arrester is defective - replace.
• Protection degree: IP20.
• Rail: TS 35.
• UL 94 flammability rating: V-0.
• Version: without telecomm. contact.

Insulation coordination acc. to EN 50178:

• Pollution severity: 2.
• Surge voltage category: III.

Photovoltaic technical data:

• Discharge current In (8/20 µs): 12.5 kA.
• Maximum continuous operating voltage DC UCPV mode +/-, -/PE, +/PE: 1,000 V.
• Protection level Up (+/-): ≤ 5.6 kV.
• Protection level Up (+/PE): ≤ 2.8 kV.
• Protection level Up (-/PE): ≤ 2.8 kV.
• PV system voltage, max. Ucpv: 1,000 V.
• Requirements class: Type II.
• Short-circuit curent ISCPV: 200 A.
• Standards: EN 50539-11.

Rated data IEC / EN:

• Discharge current Imax (8/20µs) wire-PE: 25 kA.
• Discharge current In (8/20µs) wire-PE: 12.5 kA.
• Leakage current at Un: 30 µA.
• Max. continuous voltage, Uc (DC): 1000 V.
• Number of poles: 2.
• PV voltage, acc. to IEC 60364-7-712: ≤ 1000 V.
• Rated voltage (DC): 1000 V.
• Response time: ≤ 25 ns.
• Signalling contact: No.
• SPD type: T2.
• Standards: EN 50539-11.
• Voltage type: DC.

Connection data:

• Stripping length: 15 mm.
• Type of connection: Screw connection.
• Stripping length, rated connection: 15 mm.
• Tightening torque, min.: 2 Nm.
• Tightening torque, max.: 3 Nm.
• Clamping range, rated connection: 16 mm².
• Clamping range, min.: 1.5 mm².
• Clamping range, max.: 35 mm².
• Wire cross-section, solid, min.: 1.5 mm².
• Wire cross-section, solid, max.: 16 mm².
• Wire connection cross section, finely stranded, min.: 1.5 mm².
• Wire connection cross section, finely stranded, max.: 25 mm².
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 1.5 mm².
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 50 mm².
• Connection cross-section, stranded, min.: 1.5 mm².
• Connection cross-section, stranded, max.: 50 mm².
