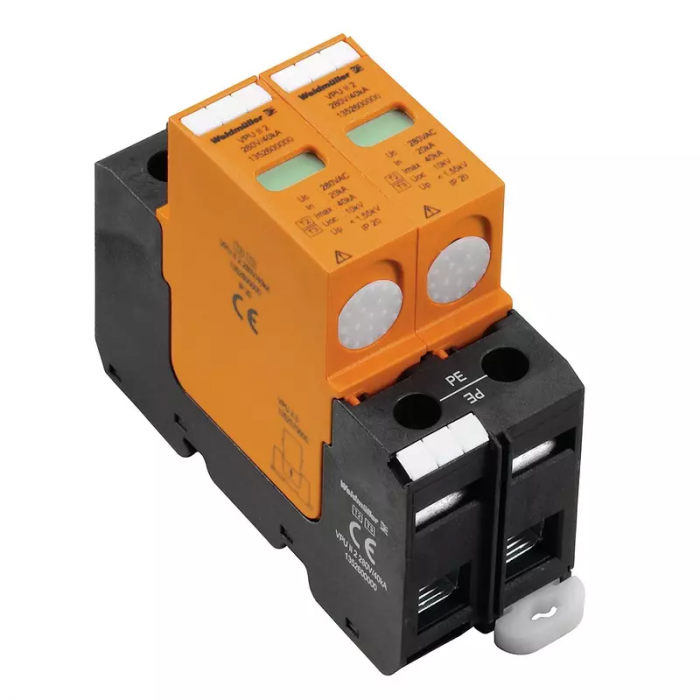

VPU II 2 R 280V/40KA
Pricing avialable on request
Description:
- The interface provides lightning and surge protection with a pluggable arrester, coded voltage level, excellent energy absorption, short spark time, and no need for follow-current installation on the distribution board.
- Type II/III surge prevention. Uc: 280 V.
- Suitable with 230/400-volt mains systems.
- Pluggable arrester.
- Voltage levels are coded.
- High energy absorption and fast time to sparkover.
- There is no current follow up.
- Installation in the distribution board.
- Thermal protection function.
- Coordination with VPU Type I.
Specifications:
- Dimensions and Weight:
- Width: 35.6 mm.
- Depth: 69 mm.
- Height: 106 mm.
- Mounting dimension – height: 75 mm.
- Net weight: 288 g.
- Temperatures:
- Operating temperature: -40 °C...70 °C.
- Storage temperature: -40 °C...80 °C.
- Discharge surge current of top part:
- Limiting discharge current (8/20 µs) Imax: 40 kA.
- Rated discharge current (8/20 µs) In: 20 kA.
- Colour: Black, Arrestor Red.
- Design: Installation housing, 2TE Insta IP20.
- Lighting Arrestor: Yes.
- Mounting rail: TS 35, TS 35 x 15, TS 35 x 7.5.
- Optical Function display: Green = OK; Red = arrestor is defective – replace.
- Degree of protection: IP20.
- UL 94 flammability rating: V-0.
- Insulation coordination acc. to EN 50178:
- Pollution severity: 2.
- Surge voltage category: III.
- Protection level UP (typ.): ≤ 1.55 kV.
| SKU | 1352620000 |
|---|---|
| Brand | Weidmuller |
