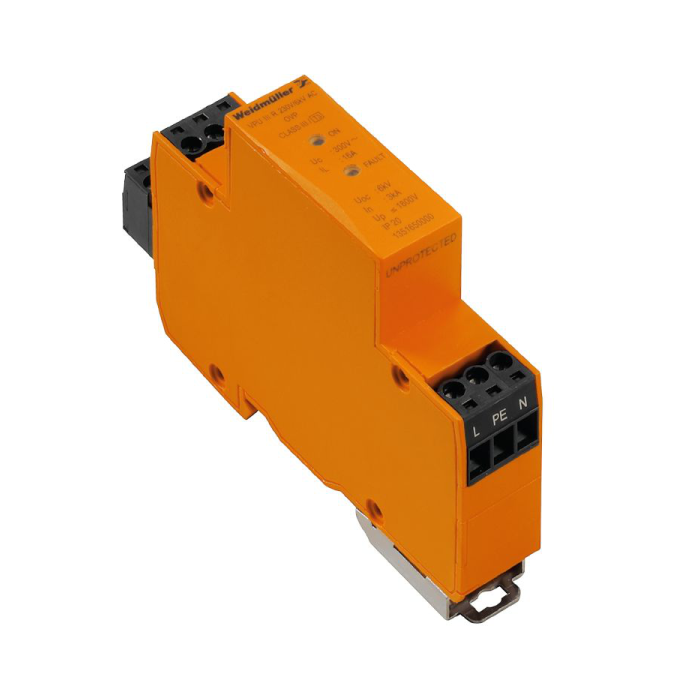

Dimensions and weights:

• Depth: 71.5 mm.
• Depth (inches): 2.815 inch.
• Height: 102 mm.
• Height (inches): 4.016 inch.
• Width: 18 mm.
• Width (inches): 0.709 inch.
• Net weight: 77 g.

Temperatures:

• Storage temperature: -40 °C...70 °C.
• Operating temperature: -40 °C...70 °C.
• Humidity: 5 - 95% rel. humidity.

Environmental Product Compliance:

• REACH SVHC: /.
• RoHS Compliance Status: Compliant without exemption.

Connection data, remote alert:

• Connection type: Screw connection.
• Cross-section for connected wire, solid core, max.: 1.5 mm².
• Cross-section for connected wire, solid core, min.: 0.2 mm².
• Max. torque: 0.5 Nm.
• Stripping length: 5 mm.

General data:

• Colour: orange.
• Design: Installation housing; 1TE, Insta IP 20.
• Optical function display: Green LED = OK, Red LED = arrester is defective, replace.
• Protection degree: IP20.
• Rail: TS 35.
• Segment: Power distribution.
• UL 94 flammability rating: V-0.
• Version: with remote contact.

Insulation coordination acc. to EN 50178:

• Pollution severity: 2.
• Surge voltage category: II.

Rated data IEC / EN:

• Combined pulse UOC: 6 kV.
• Discharge current, max. (8/20 µs): 3 kA.
• Energy coordination (≤10 m): Type II, Type III.
• Fuse: 16 A.
• Leakage current at Un: 30 µA.
• Low voltage network: Single-phase.
• Mains frequency at 250 Vmax: 50...60Hz.
• Max. continuous voltage, Uc (AC): 300 V.
• Number of poles: 1.
• PE conductor current IPE: 30 µA.
• Protection level Up at IN (L/N-PE): ≤ 1.8 kV.
• Rated current IN: 16 A.
• Rated voltage (AC): 230 V.
• Requirements category acc. to IEC 61643-11: Type III.
• Requirements class, acc. to EN 61643-11: T3.
• Response time: ≤ 100 ns.
• Short-circuit current rating ISCCR: 1.5 kA.
• Signalling contact: 250 V 10 A 1 NC.
• Standards: IEC61643-11, EN61643-11.
• Temporary surge voltage (over-voltage) - TOV: 438 V.
• Voltage type: AC.

Connection data:

• Stripping length: 7 mm.
• Type of connection: Screw connection.
• Stripping length, rated connection: 7 mm.
• Tightening torque, min.: 0.4 Nm.
• Tightening torque, max.: 0.5 Nm.
• Clamping range, rated connection: 2.5 mm².
• Clamping range, min.: 0.5 mm².
• Clamping range, max.: 2.5 mm².
• Wire cross-section, solid, min.: 0.13 mm².
• Wire cross-section, solid, max.: 2.5 mm².
• Wire connection cross section, finely stranded, min.: 0.5 mm².
• Wire connection cross section, finely stranded, max.: 2.5 mm².
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 0.5 mm².
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 2.5 mm².
• Connection cross-section, stranded, min.: 0.5 mm².
• Connection cross-section, stranded, max.: 2.5 mm².

Guarantee:

• Time interval: 5 years.
