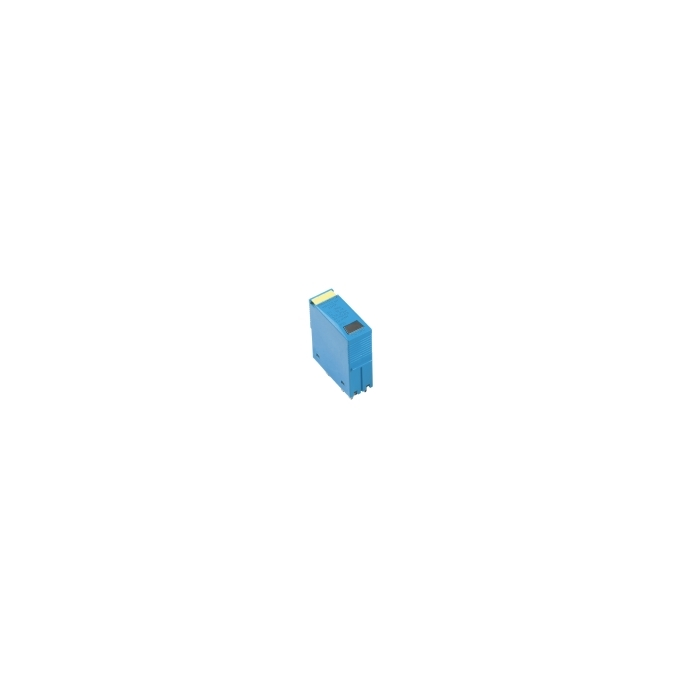

VSPC 1CL 24VDC EX
Description:
- For use with the base element VSPC BASE 1CL FG for a single floating ground-driven paired cable, utilize a surge protection plug.
- For use in intrinsically safe Ex IA circuits, a two-stage protection circuit with coarse protection, decoupling resistors, fine protection between the signal wires, and coarse common mode voltage protection to earth is provided.
- The rated voltage and switching type are used to mechanically identify the plug from the base element.
- Optical identification of the protected plug according to voltage level and protected switching type.
- A counter-profile and coding pin-equipped protected plug for the base element.
- One option is to mark the plug.
Specifications:
- Version: Surge protection for instrumentation and control, without warning function / function indicator, UP(L/N-PE) < 800 V.
- Depth: 69 mm.
- Height: 90 mm.
- Width: 17.8 mm.
- Storage temperature: -40 °C...80 °C.
- Operating temperature: -40 °C...70 °C.
- Humidity: 5...96 %.
- Color: Light Blue.
- Design: Terminal, miscellaneous.
- No Optical function display.
- Protection degree: IP20.
- Rail: TS 35, TS 35 x 7.5.
- Segment: Measurement - Monitoring – Setting.
- UL 94 flammability rating: V-0.
| Brand | Weidmuller |
|---|
