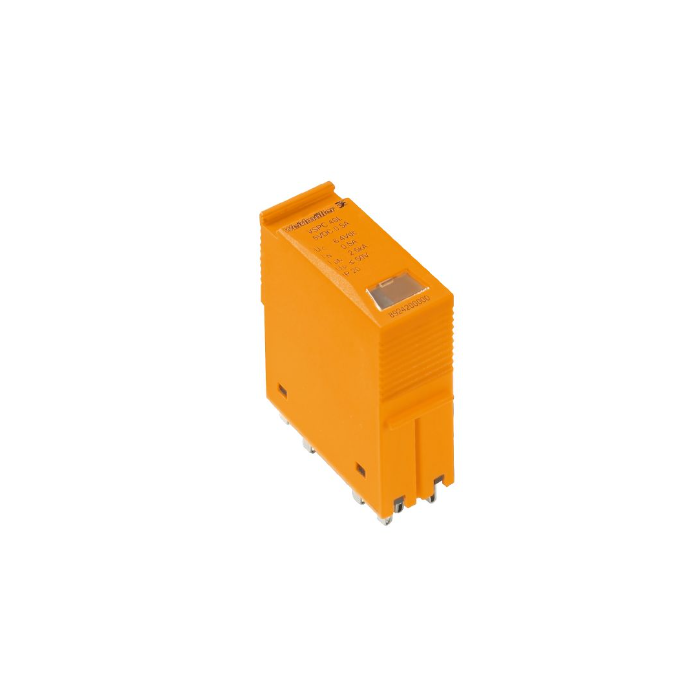

VSPC 1CL 24VDC R
Pricing available on request
VSPC 1CL 24VDC R:
- Analog signal/current loop (CL) protection encompasses the following signals:
- Signals from current loops (analogue readings of sensors over long distances): 4-20 mA, 0-20 mA, etc.
- three-, four-, and two-wire systems without a single reference potential.
- For example, level indication signals from voltage sensors (0; 10 V, PT 100, etc.) and temperature measurement.
- Pluggable arrester featuring pull-out and plug-in that is interruption-free and impedance-neutral.
- able to be examined using the V-TEST testing apparatus.
- A version with a floating-earth PE connection was used to avoid potential discrepancies.
- Suitable for usage in accordance with IEC 62305 installation standard (D1, C1, C2, and C3).
- A safe discharge of up to 20 kA (8/20 μs) and 2.5 kA (10/350 μs) to the PE is possible with an integrated PE foot.
Dimensions and weights:
- Depth: 69 mm.
- Depth (inches): 2.717 inch.
- Height: 98 mm.
- Height (inches): 3.858 inch.
- Width: 17.8 mm.
- Width (inches): 0.701 inch.
- Net weight: 42 g.
Temperatures:
- Storage temperature: -40 °C - 80 °C.
- Operating temperature: -40 °C - 70.
- Humidity: 5 - 96 %.
Probability of failure:
- SIL in compliance with IEC 61508: 3.
- MTTF: 2,537 a.
- SFF: 95.27 %.
- λges: 45.
- PFH in 1*10-9 per hour: 3.7.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1.
- SCIP: 71e97bb7-979f-4330-94c0-20c629bb05e3.
Rated data UL:
- Certificate No. (UL): E311081.
- UL certificate: UL 497b Certificate.
CSA protection data:
- Gas group C: IIB.
- Gas group D: IIA.
- Gas groups A, B: IIC.
- Input voltage, max. Ui: 28 V.
- Internal capacity, max. CI: 1 nF.
- Internal inductance, max. LI: 0 µH.
General data:
- Colour: orange.
- Design: Terminal, miscellaneous.
- Optical function display: green = OK; red = arrester is defective - replace.
- protected current loops: 1.
- Protection degree: IP20.
- Segment: Measurement - Monitoring - Setting.
- UL 94 flammability rating: V-0.
- Version: with warning function / function indicator.
Insulation coordination acc. to EN 50178:
- Pollution severity: 2.
- Surge voltage category: III.
Rated data IEC / EN:
- Discharge current Imax (8/20µs) GND-PE: 10 kA.
- Discharge current Imax (8/20µs) wire-PE: 10 kA.
- Discharge current Imax (8/20µs) wire-wire: 10 kA.
- Discharge current In (8/20µs) GND-PE: 2.5 kA.
- Discharge current In (8/20µs) wire-PE: 2.5 kA.
- Discharge current In (8/20µs) wire-wire: 2.5 kA.
- Fuse: 0.5 A.
- Lightning test current, Iimp (10/350 µs) GND-PE: 2.5 kA.
- Lightning test current, Iimp (10/350 µs) Wire-PE: 2.5 kA.
- Lightning test current, Iimp (10/350 µs) wire-wire: 2.5 kA.
- Max. continuous voltage, Uc (DC): 28 V.
- Number of poles: 1.
- Overload - failure mode: Modus 2.
- Protection level on output side Wire-PE 1kV/µs, typically: 450 V.
- Protection level on output side Wire-wire 1 kV/µs, typically: 45 V.
- Protection level on output side Wire-wire 8/20 µs, typically: 45 V.
- Protection level UP (typ.): < 800 V.
- Protection level, UP GND - PE: 650 V.
- Protection level, UP wire - PE: 450 V.
- Protection level, UP wire - wire: 45 V.
- Pulse-reset capacity: ≤ 30 ms.
- Rated current IN: 450 mA.
- Rated voltage (DC): 24 V.
- Requirements category acc. to IEC 61643-21: C1, C2, C3, D1.
- Signal transmission properties (-3 dB): 2.4 MHz.
- Signalling contact: UN 250 V AC 0.1 A 1CO at VSPC R with VSPC control unit.
- Standards: IEC 61643-21, HART-compatible.
- Surge current-carrying capacity C1: < 1 kA 8/20 μs.
- Surge current-carrying capacity C2: 5 kA 8/20 μs.
- Surge current-carrying capacity C3: 100 A 10/1000 μs.
- Surge current-carrying capacity D1: 2.5 kA 10/350 μs.
- Voltage type: DC.
- Volume resistance: 2.20 Ω.
Further details of approvals:
- GOST certificate: GOST-Zertifikat.
Connection data:
- Type of connection: Pluggable in VSPC BASE.
Ratings IECEx/ATEX/cUL:
- cUL certificate: cUL Certificate.
Important note:
- Product information:
- Mode 2: State where the voltage-limiting part of the SPD was short-circuited due to a very low impedance within the SPD.
- The line is inoperable, but the measuring equipment is still protected by means of a short-circuit.
| SKU | 8951550000 |
|---|---|
| Brand | Weidmuller |
